Description

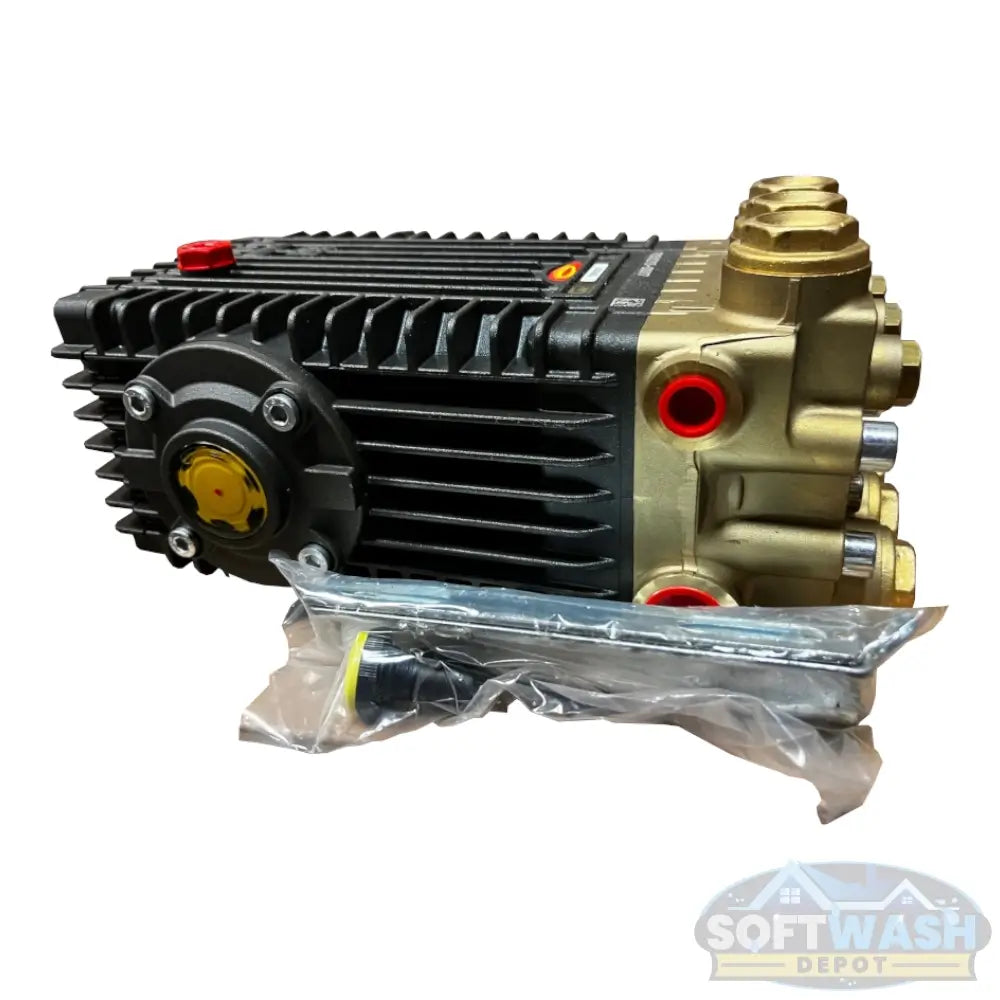

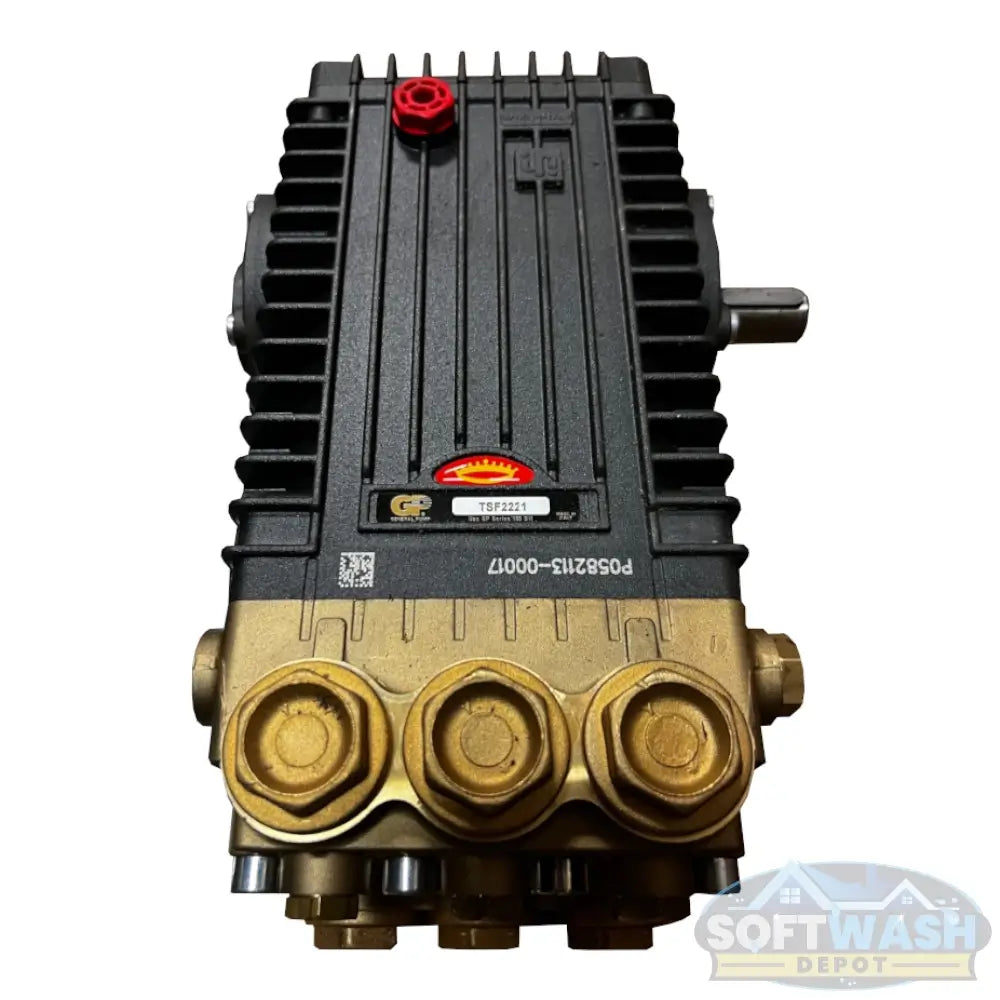

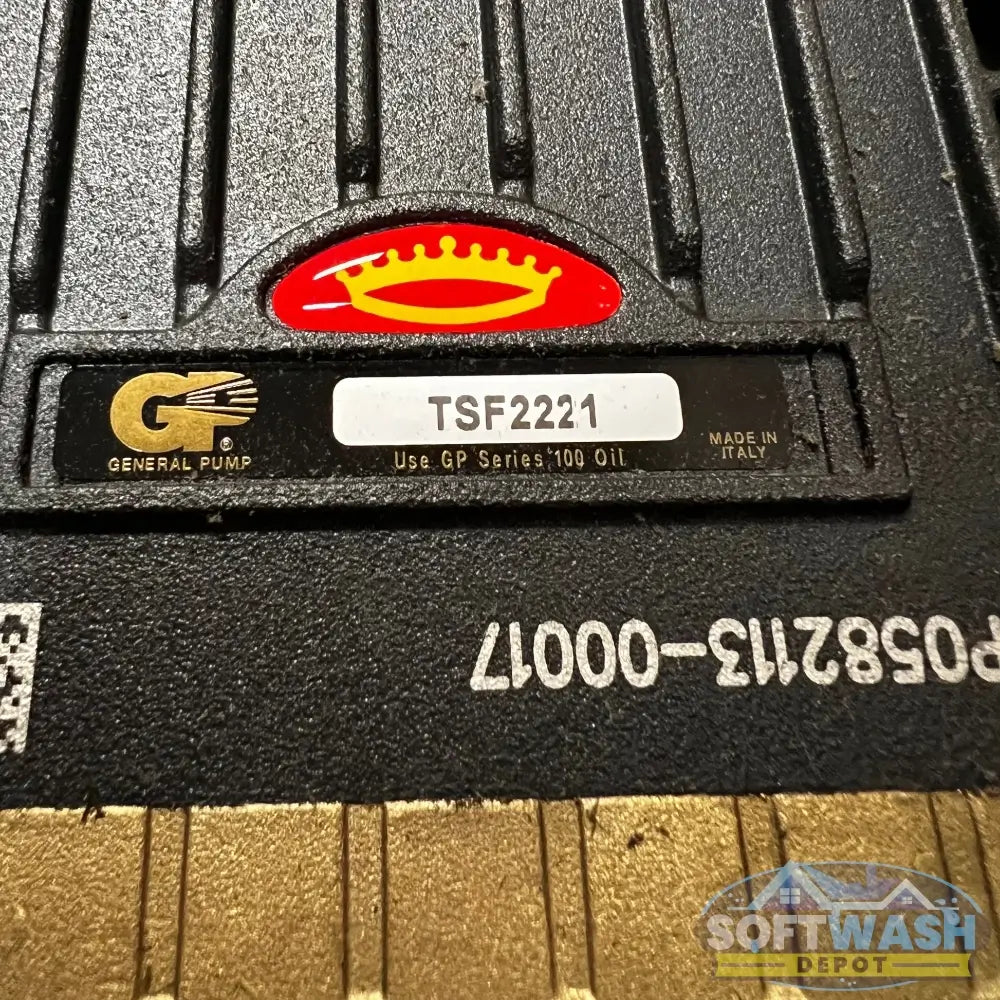

The General Pump TSF2221 is a high-performance industrial triplex plunger pump engineered for demanding professional use. Designed for superior longevity and consistent output, this pump is built to power heavy-duty pressure washing systems, offering exceptional reliability and performance under continuous operation.
Featuring a forged brass manifold, ceramic plungers, and precision-machined internal components, the TSF2221 delivers smooth, powerful flow with excellent wear resistance. As a bare pump, it provides the flexibility to pair with your preferred engine or motor setup, unloader, and accessories - making it ideal for custom rig builds and replacement installations.
Features Include:
- Oversized roller bearings
- Fully anodized crankcase
- Innovative new seal design extends seal life
- New plunger design improves thermal shock resistance
- New valve cap improves hydrostatic performance
Specifications:
- Horsepower: 21.0 EBHP
- Maximum Volume: 10.2 GPM
- Maximum Discharge Pressure: 3000 PSI
- Maximum Pump Speed: 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Plunger Bore: .866 in. / 22 mm
- Plunger Stroke: .826 in / 21 mm
- Crankcase Oil Capacity: 40.6 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 3/4”-14 BSP-F
- Discharge Port Thread: 3/8”-19 BSP-F
- Shaft Diameter: .945 in. / 24 mm
- Weight: 68 lbs.
- Dimensions: 14.94” x 9.78” x 6.99”
Additional Information:
-
✅ Industrial Triplex Plunger Pump - built for demanding applications
-
✅ Forged Brass Manifold for strength and corrosion resistance
-
✅ Ceramic Plungers deliver long-term durability and smooth operation
-
✅ Heavy-Duty Bearings & Components for maximum pump life
-
✅ Bare Pump Configuration - ready for custom system integration
-
✅ Backed by trusted General Pump quality and performance
Ideal For:
-
Commercial pressure washing rigs
-
Industrial cleaning systems
-
Fleet & equipment wash stations
-
Agricultural & manufacturing facilities
Whether you're building a high-output pressure washing system or upgrading an existing rig, the General Pump TSF2221 delivers professional-grade strength, reliability, and performance every time.
