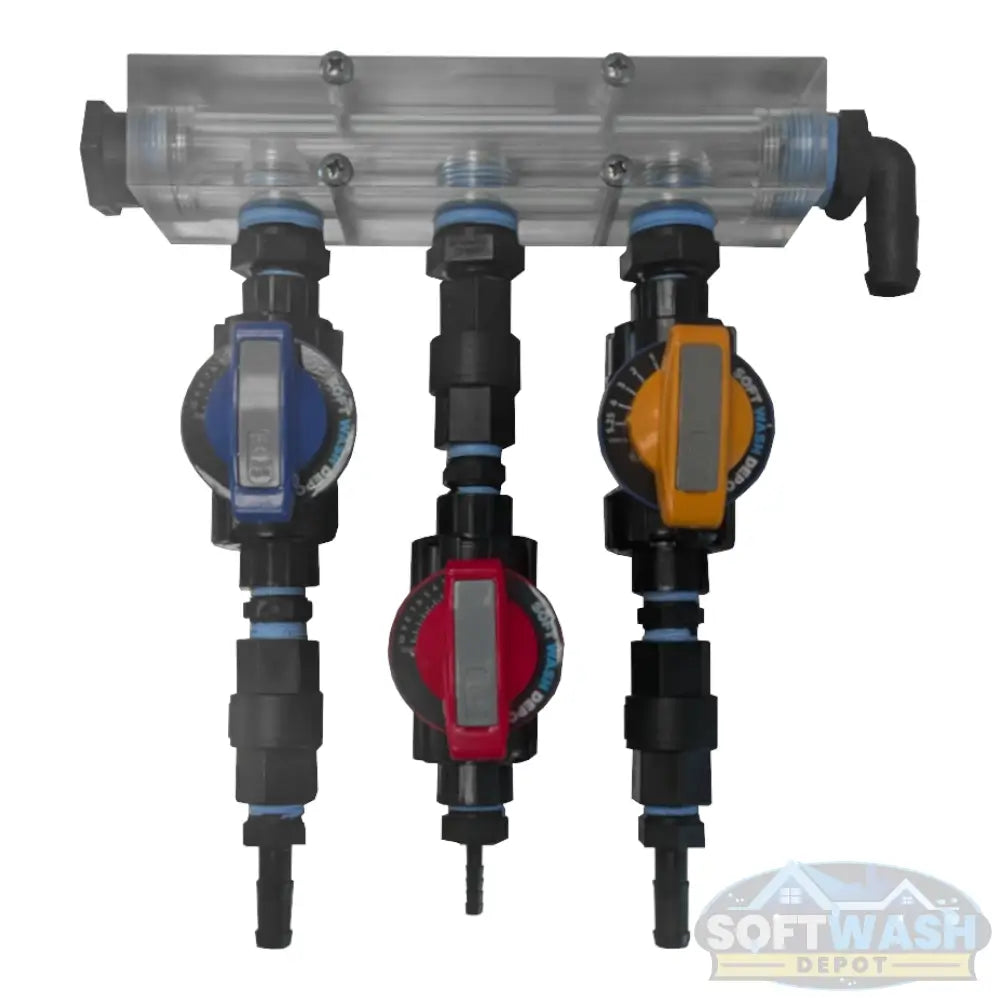

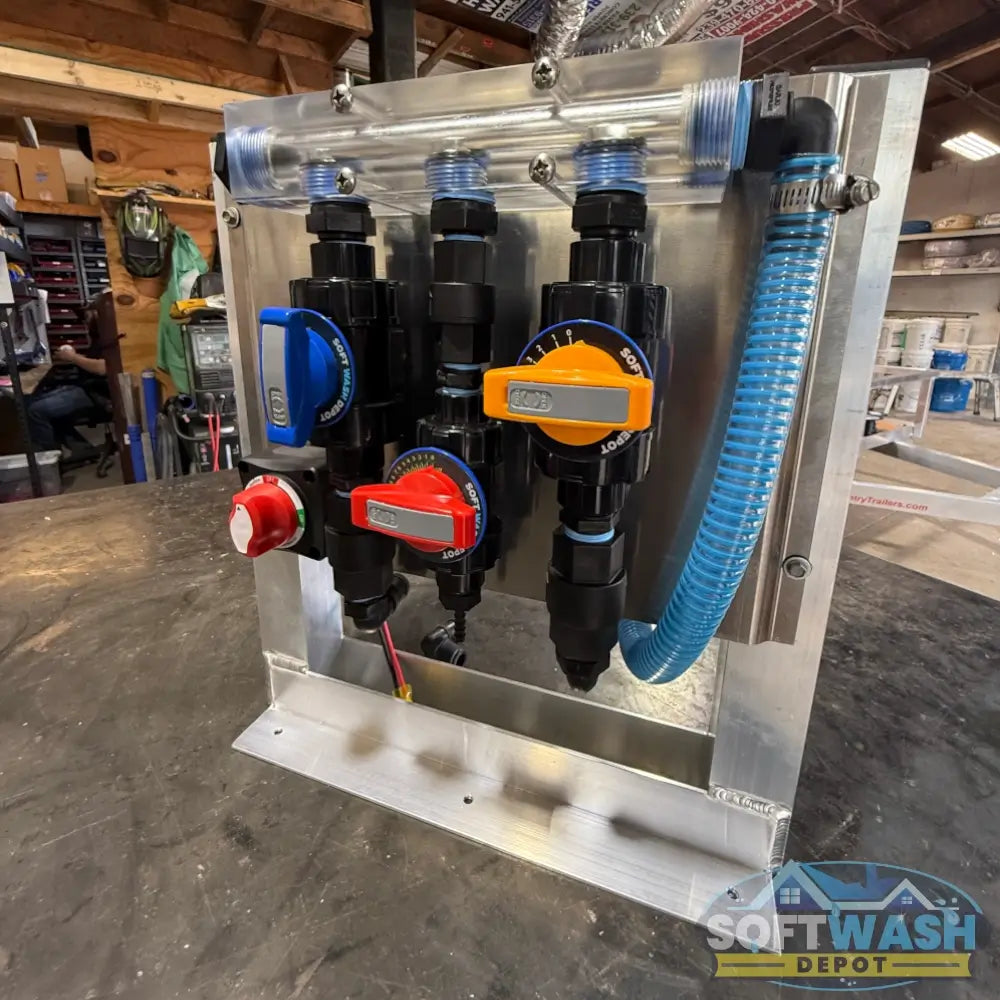

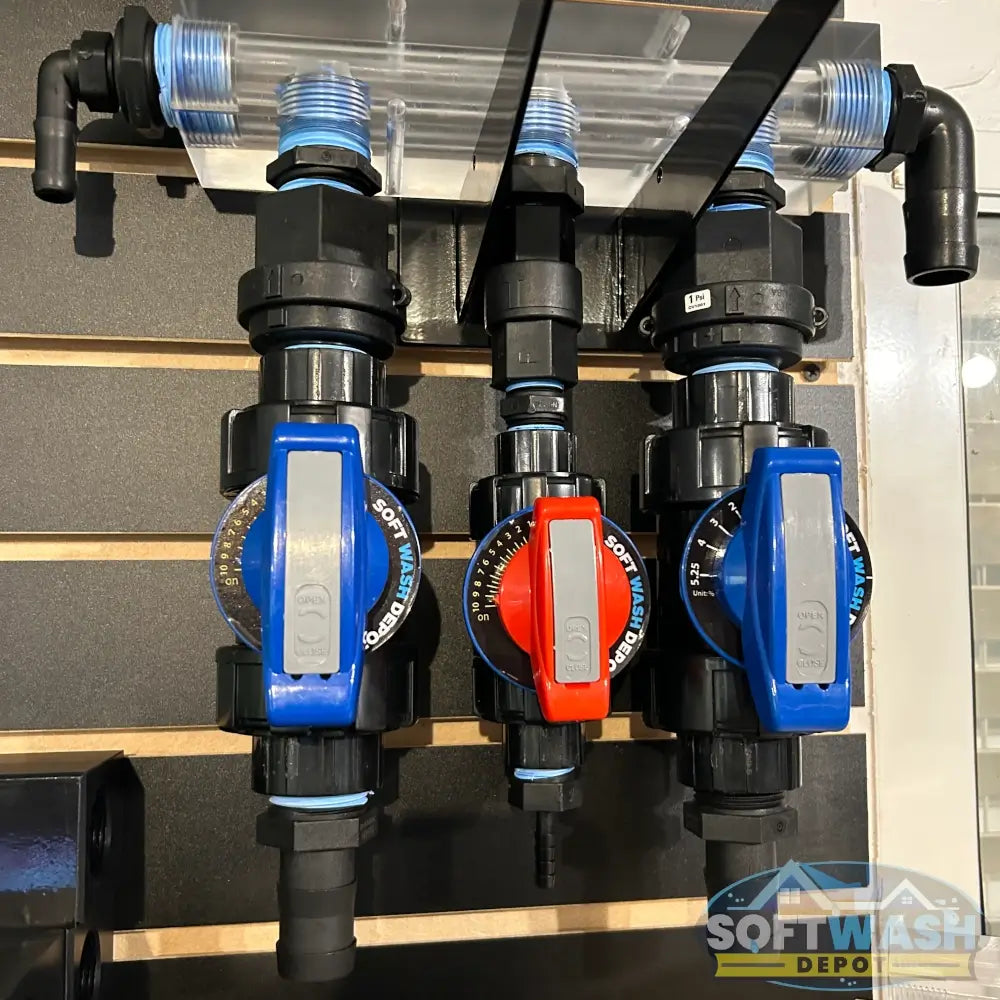

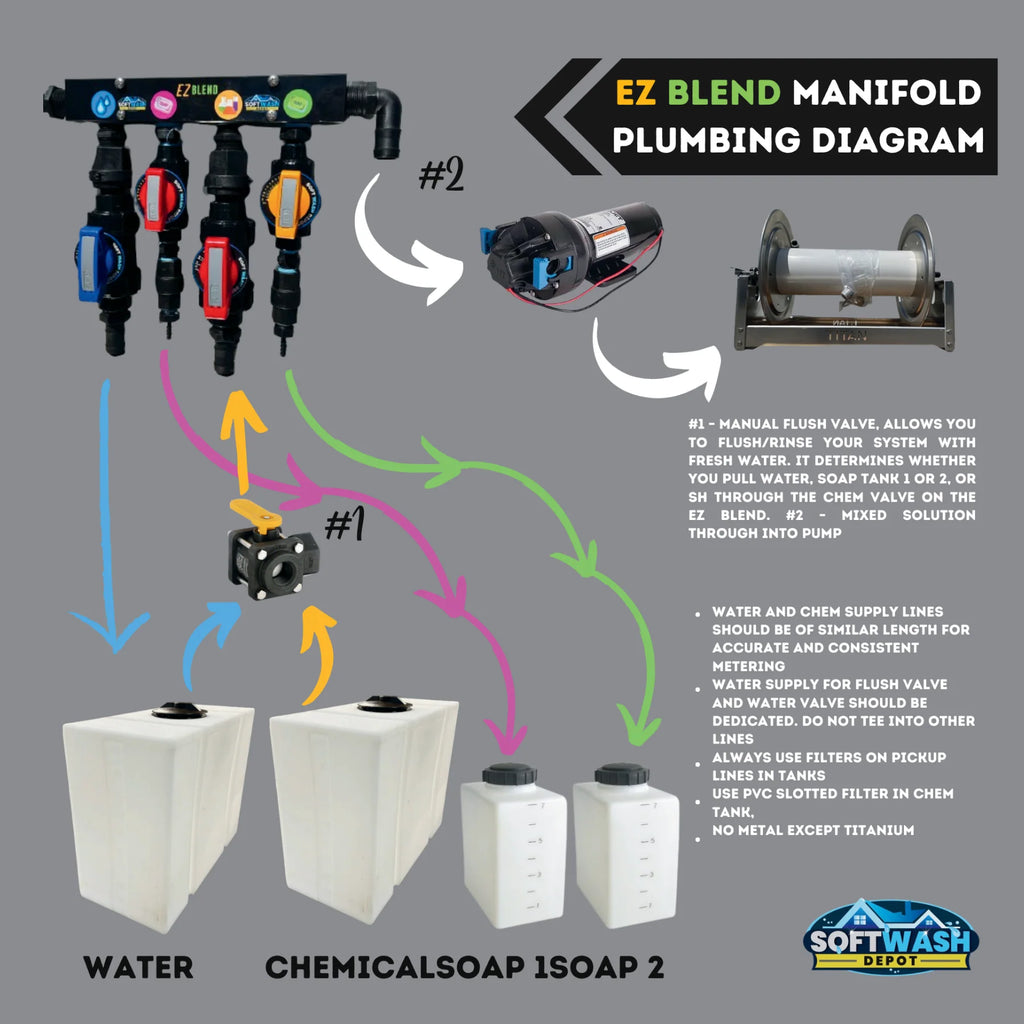

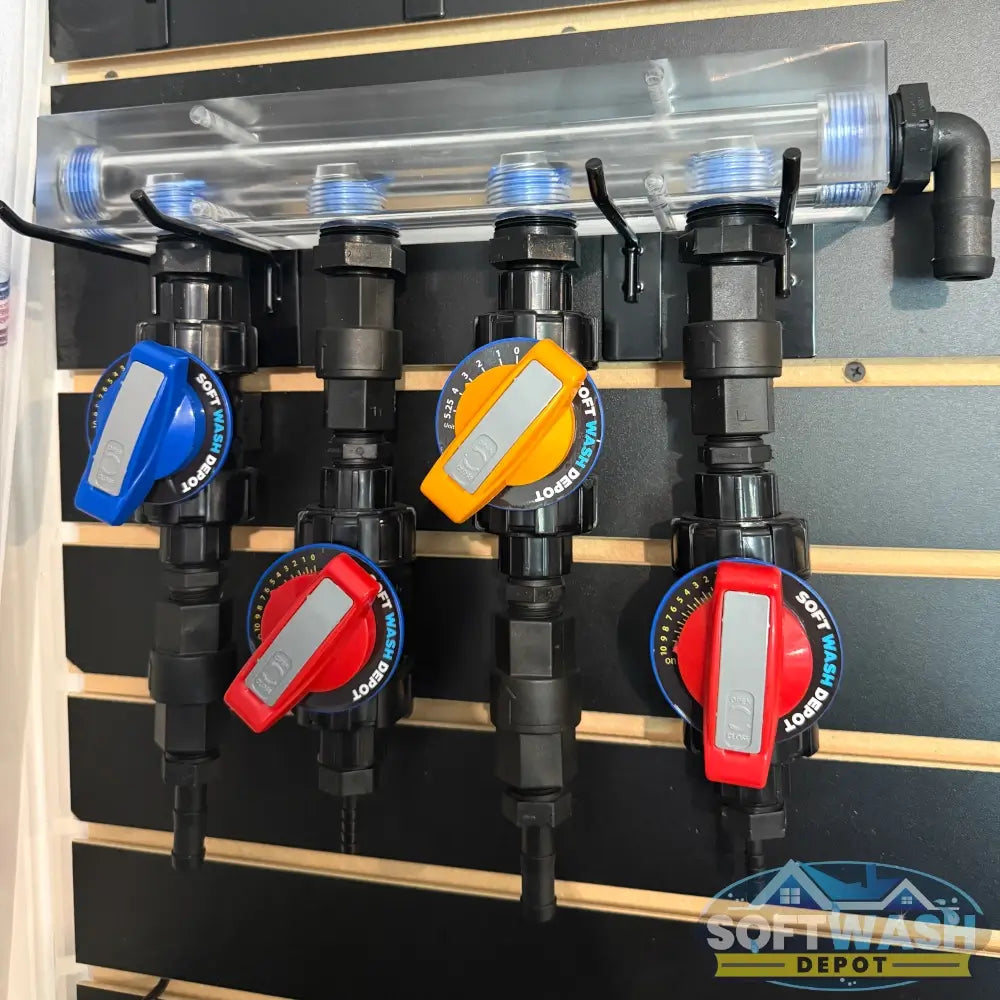

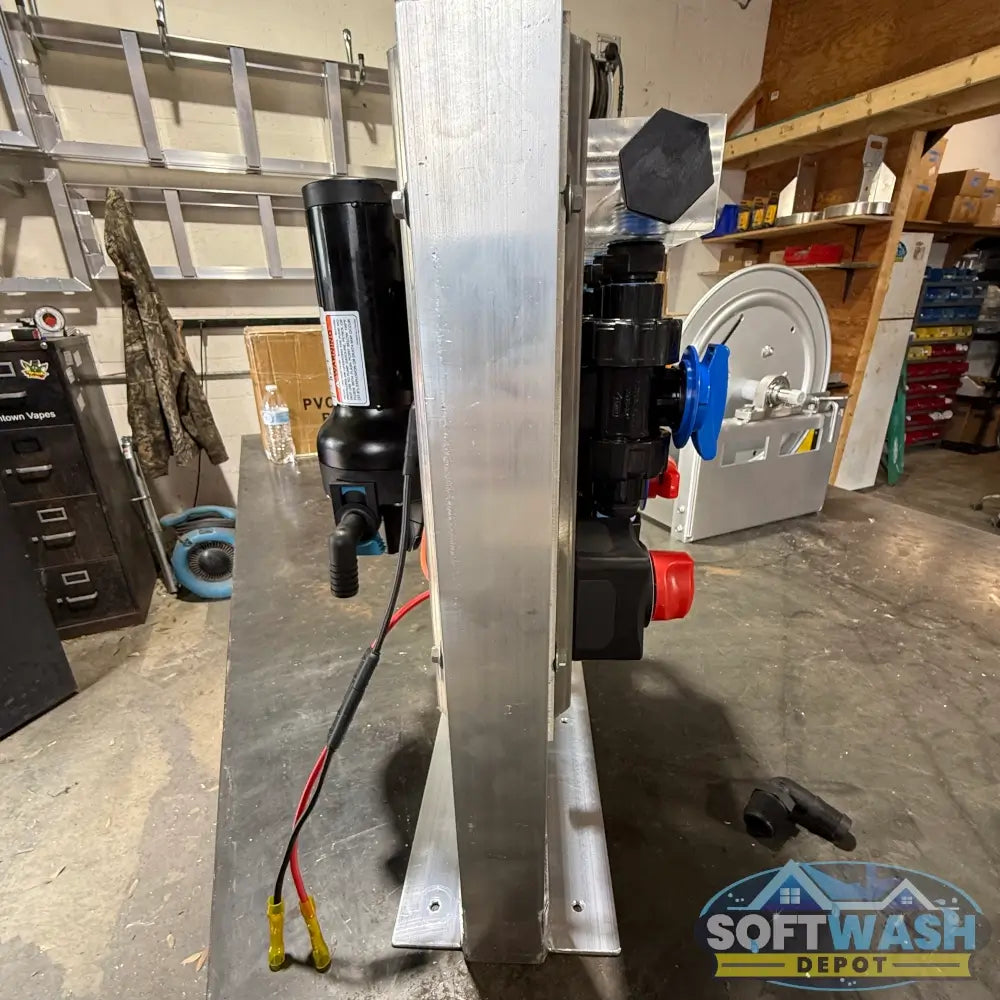

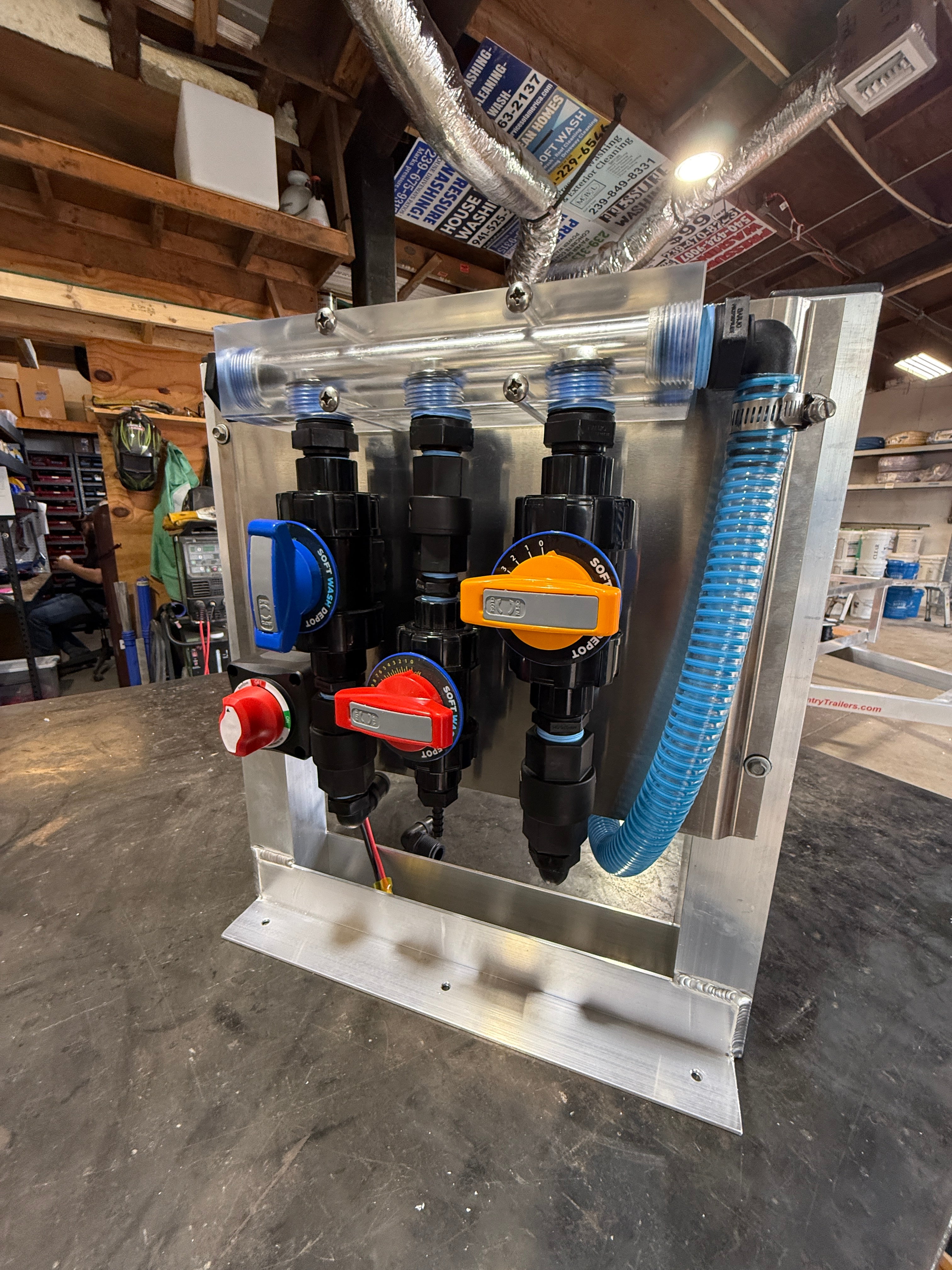

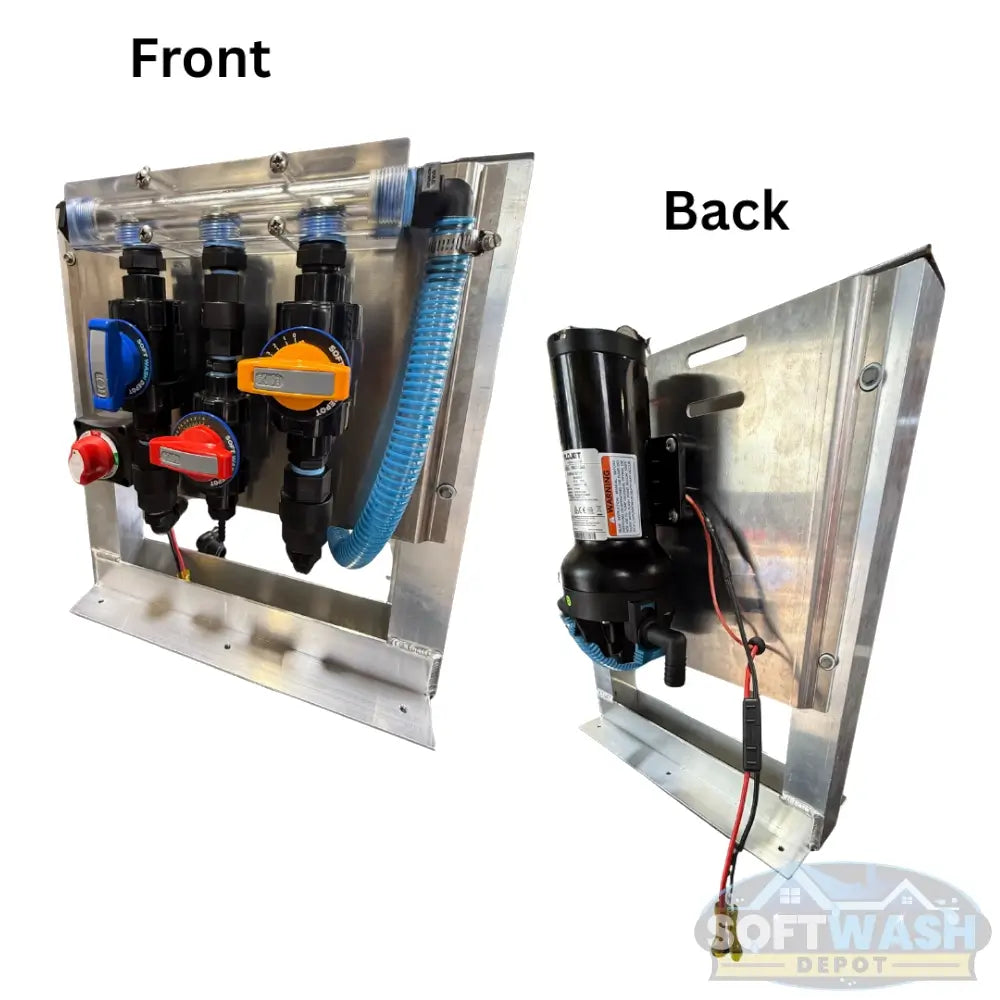

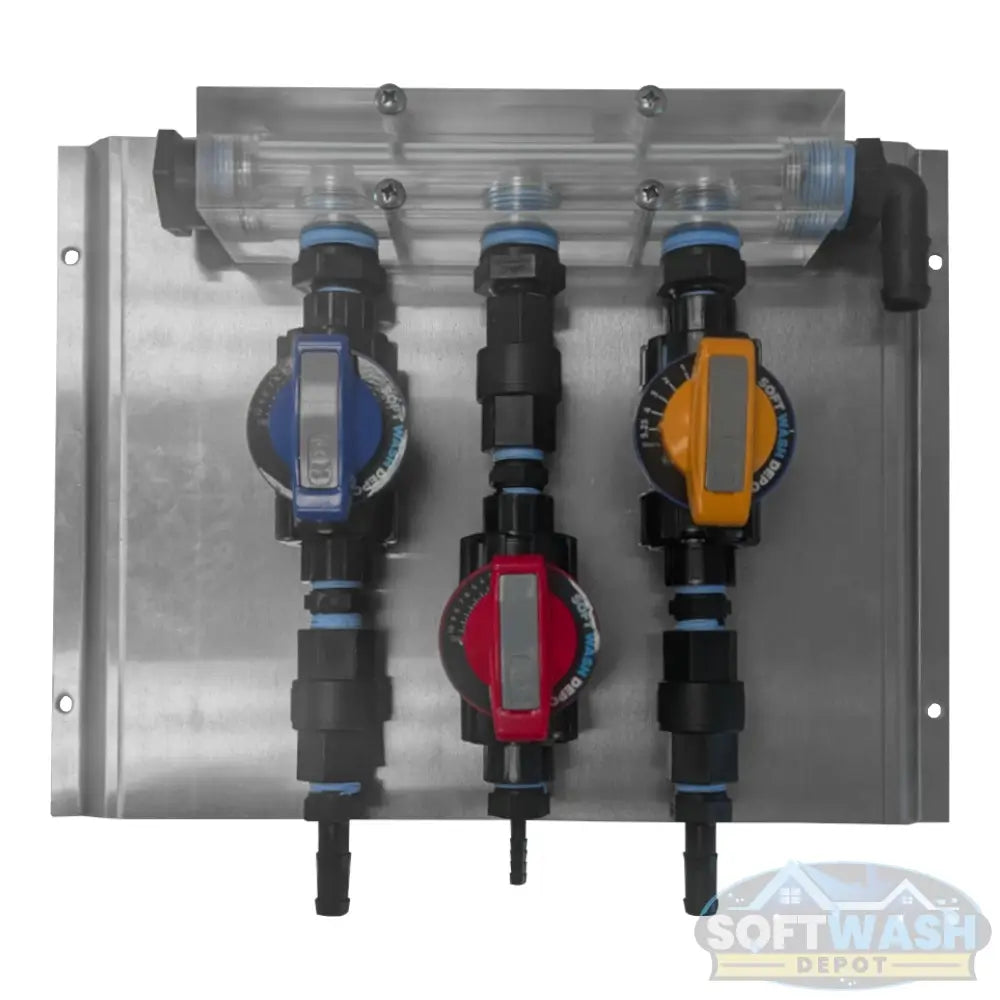

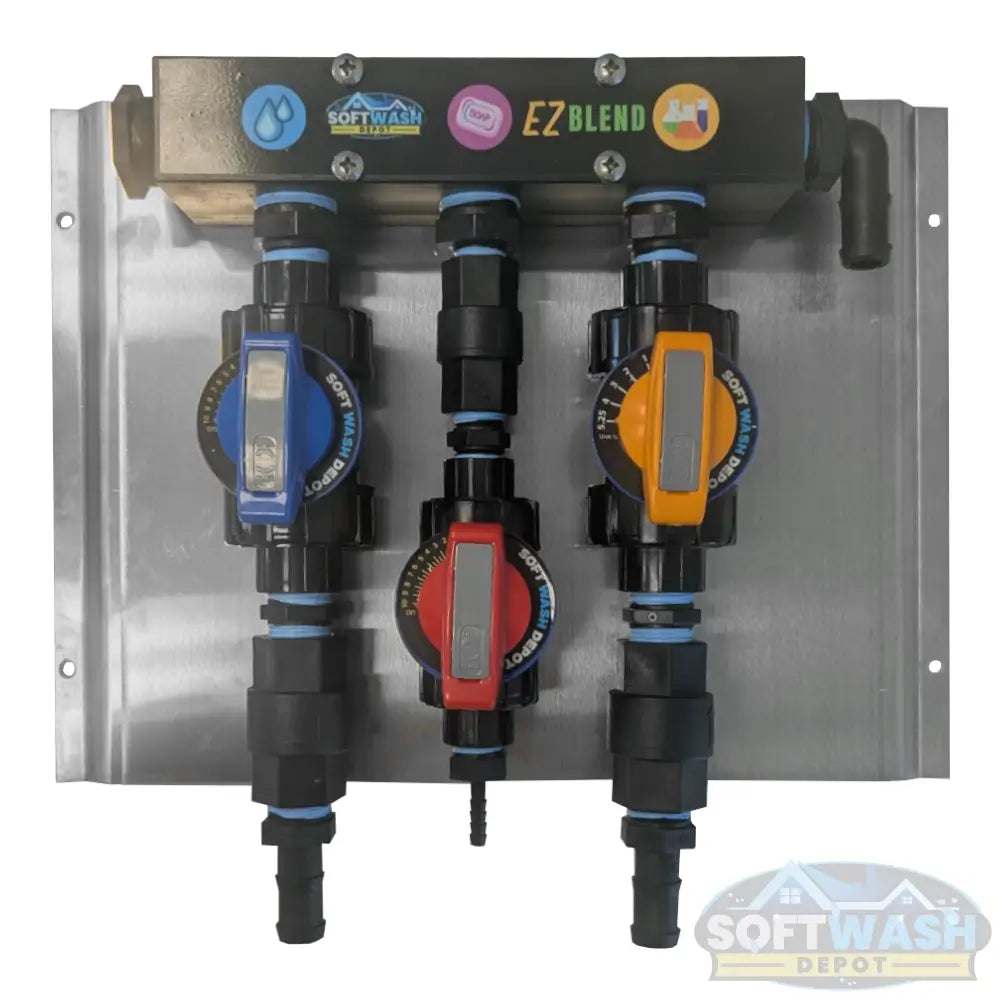

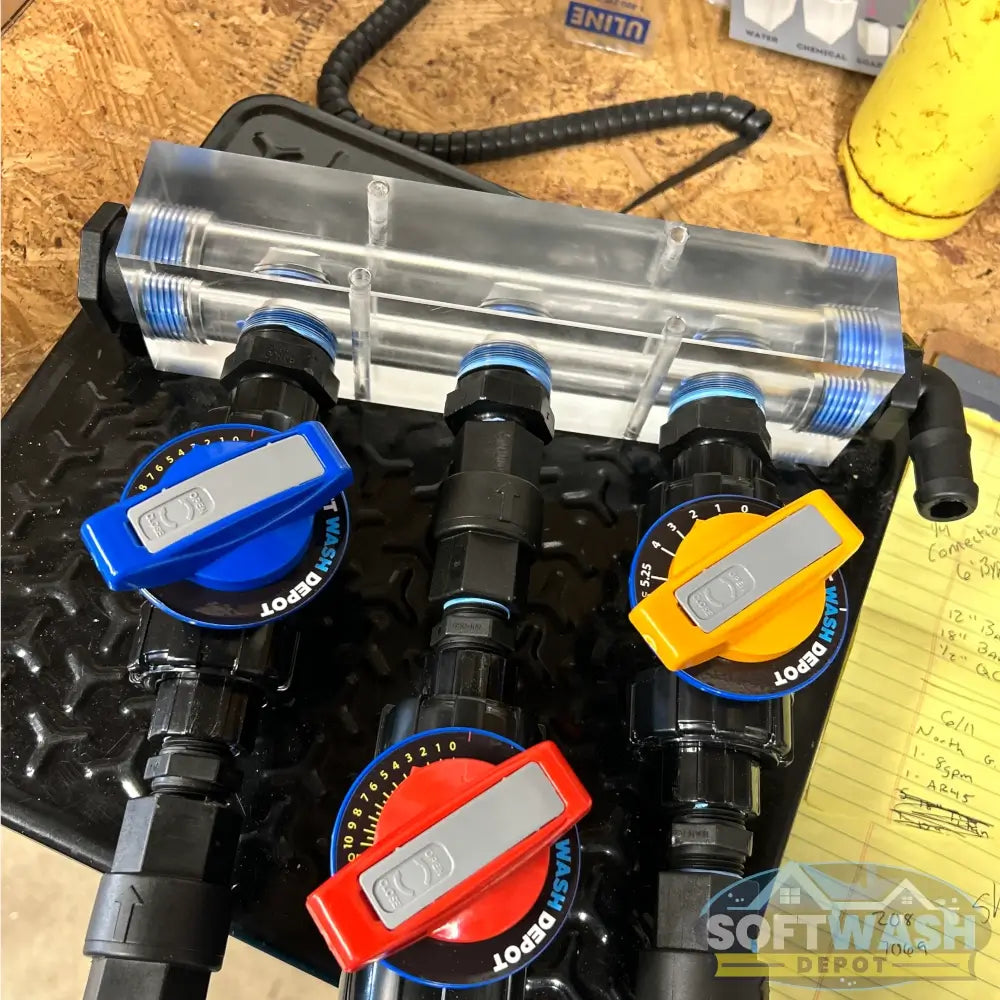

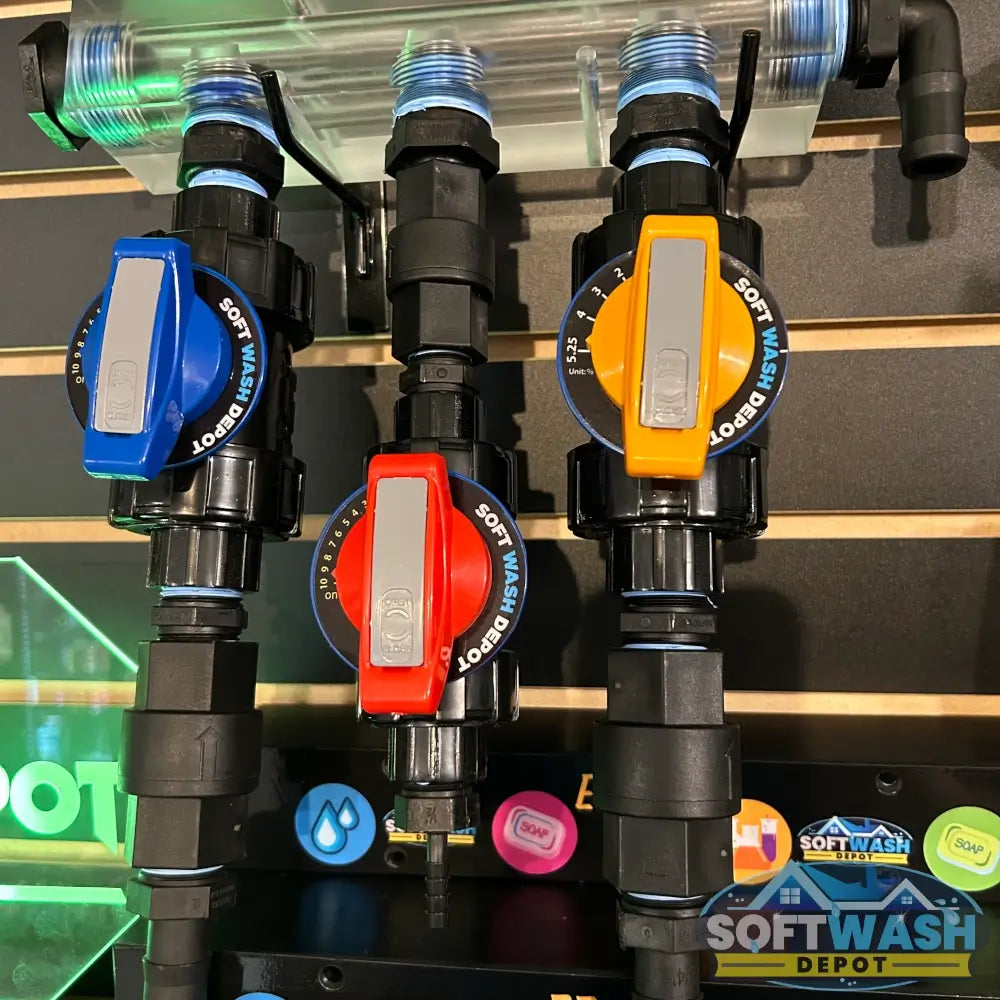

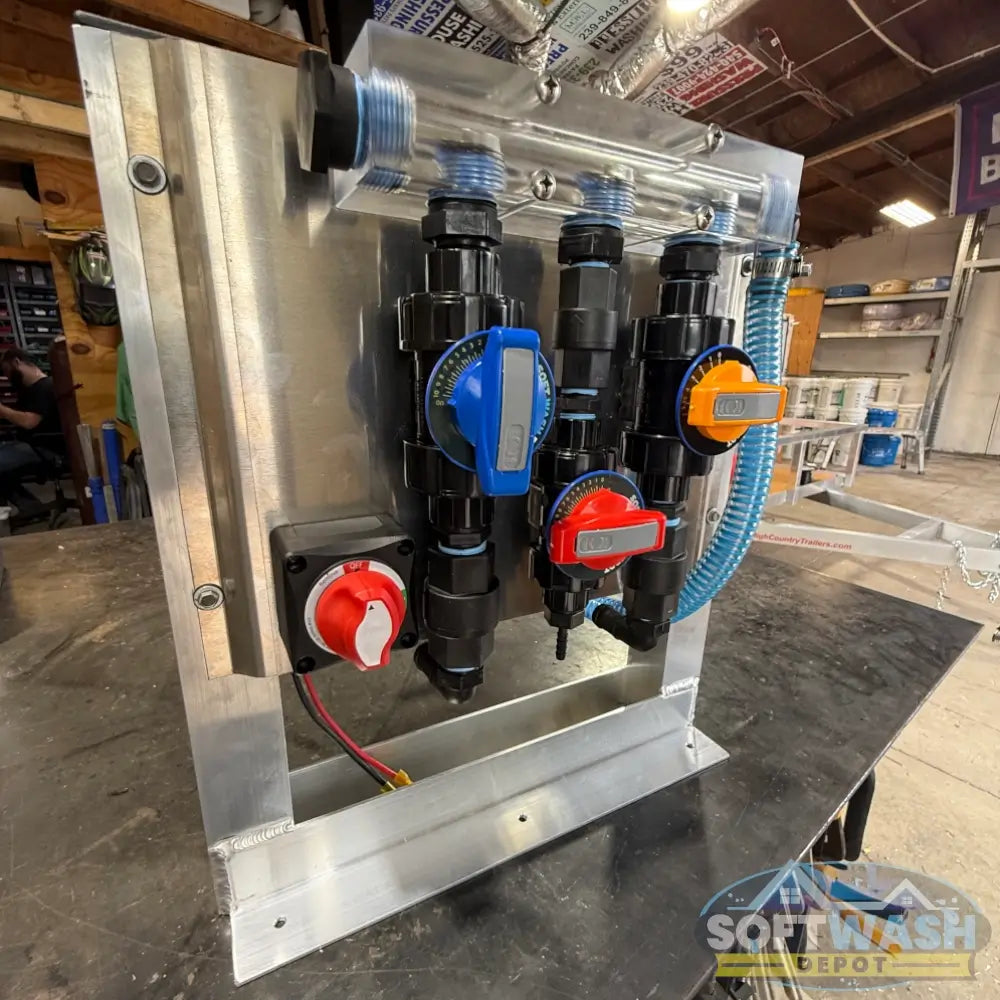

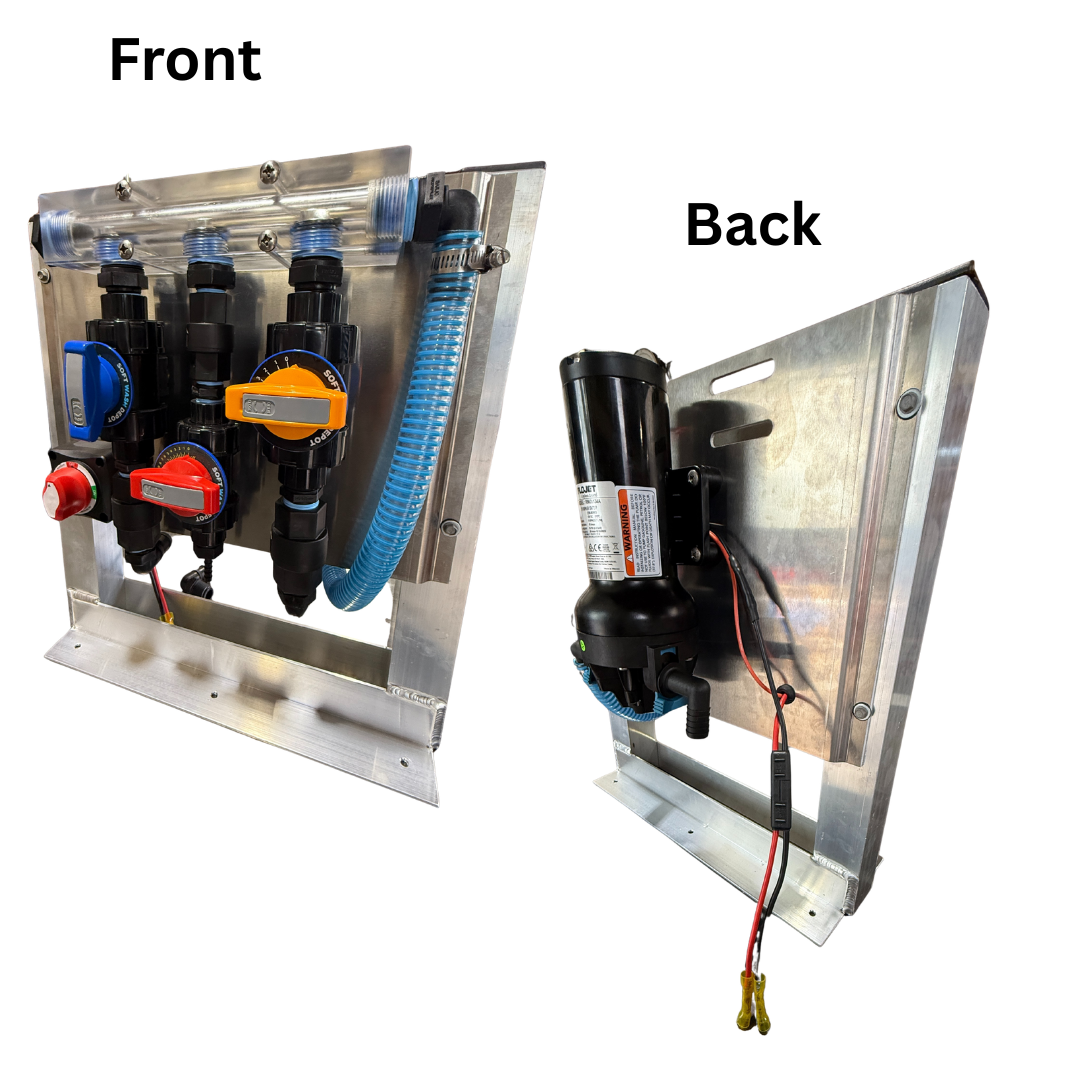

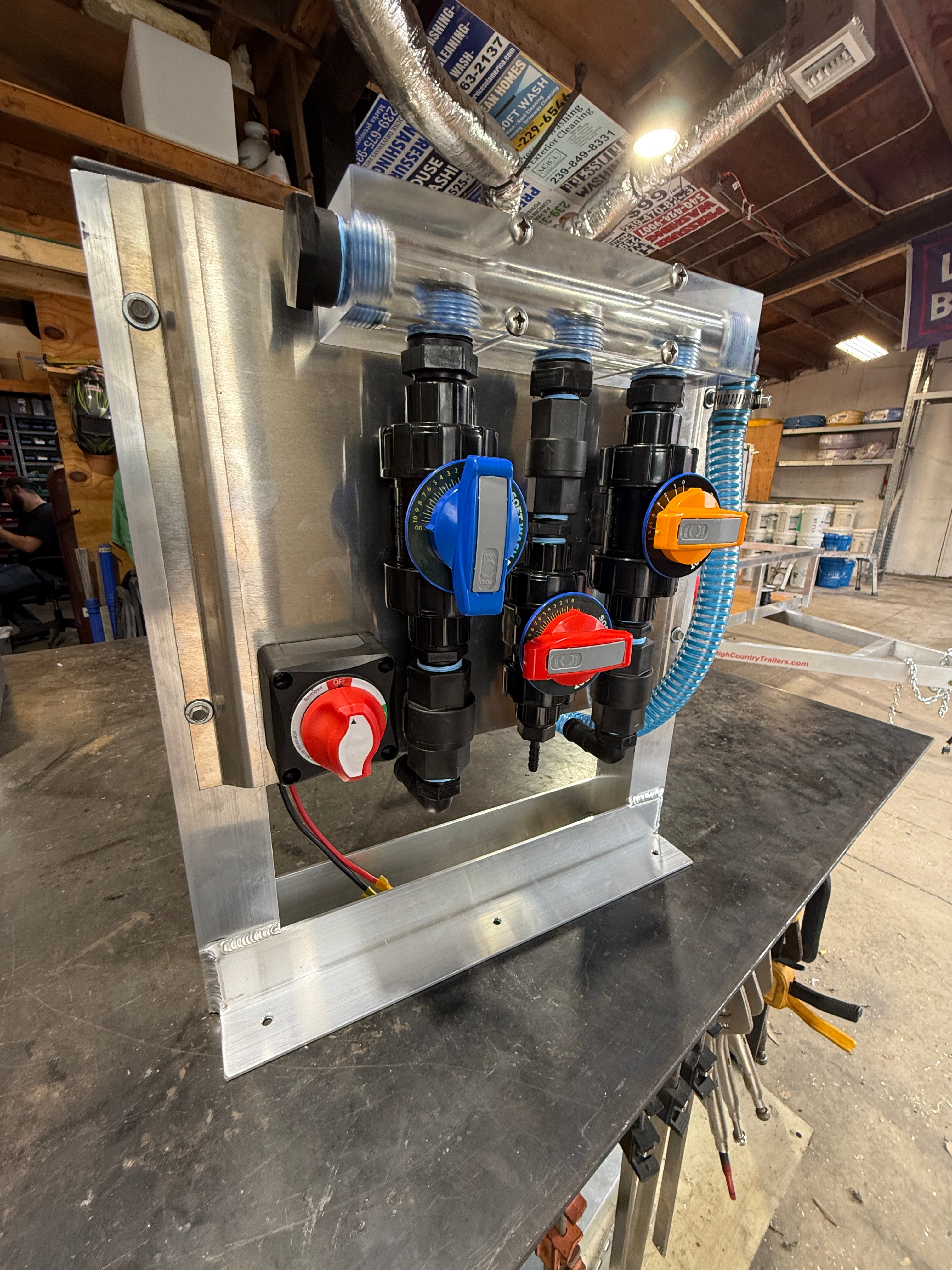

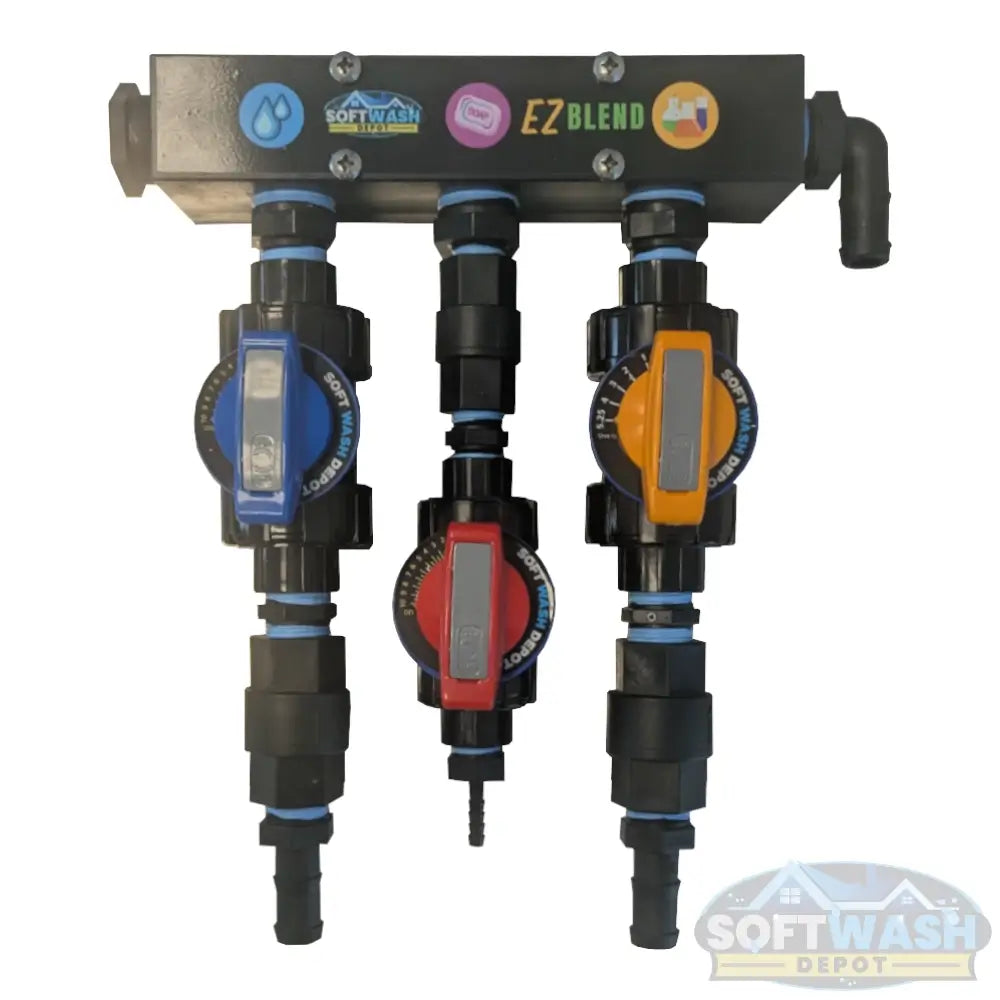

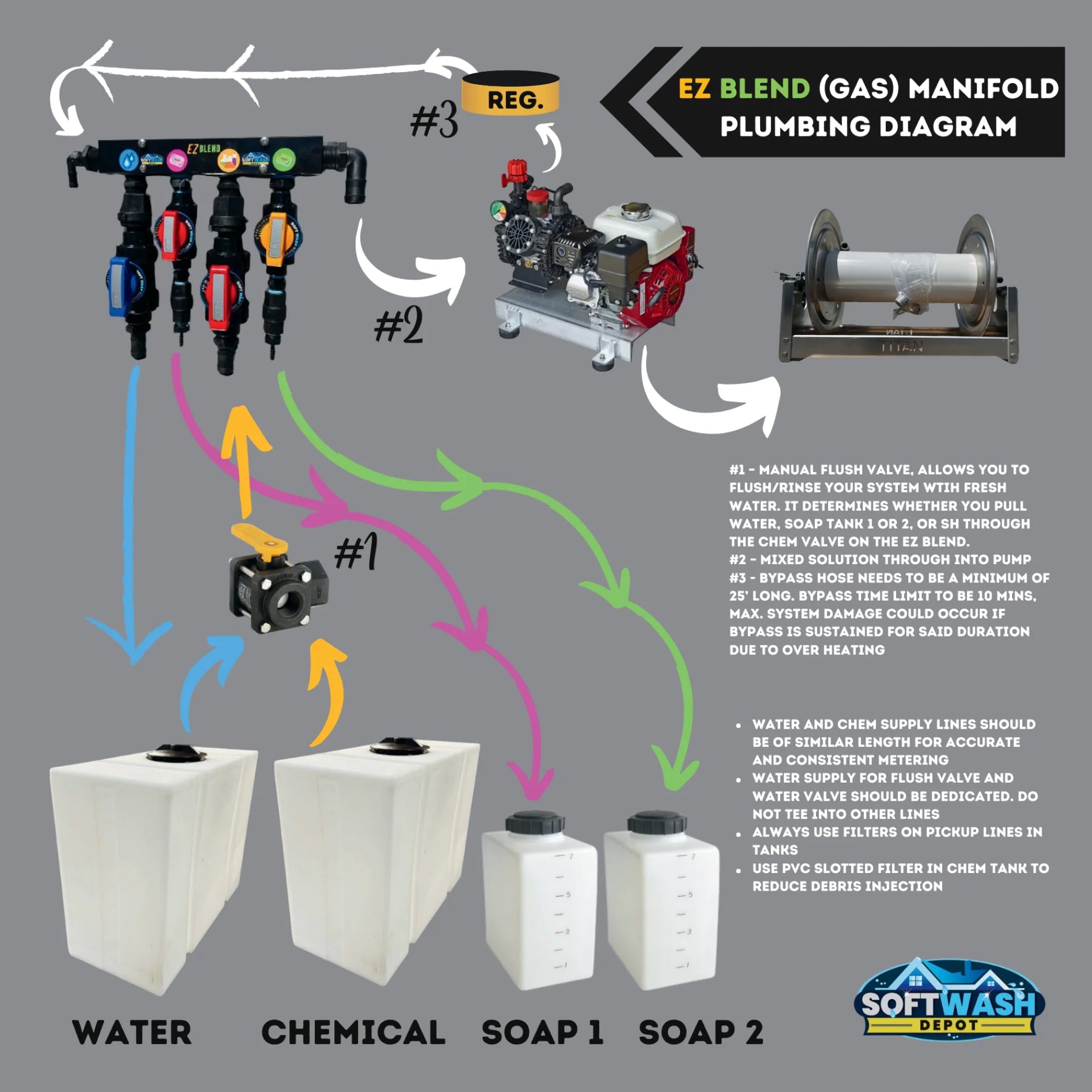

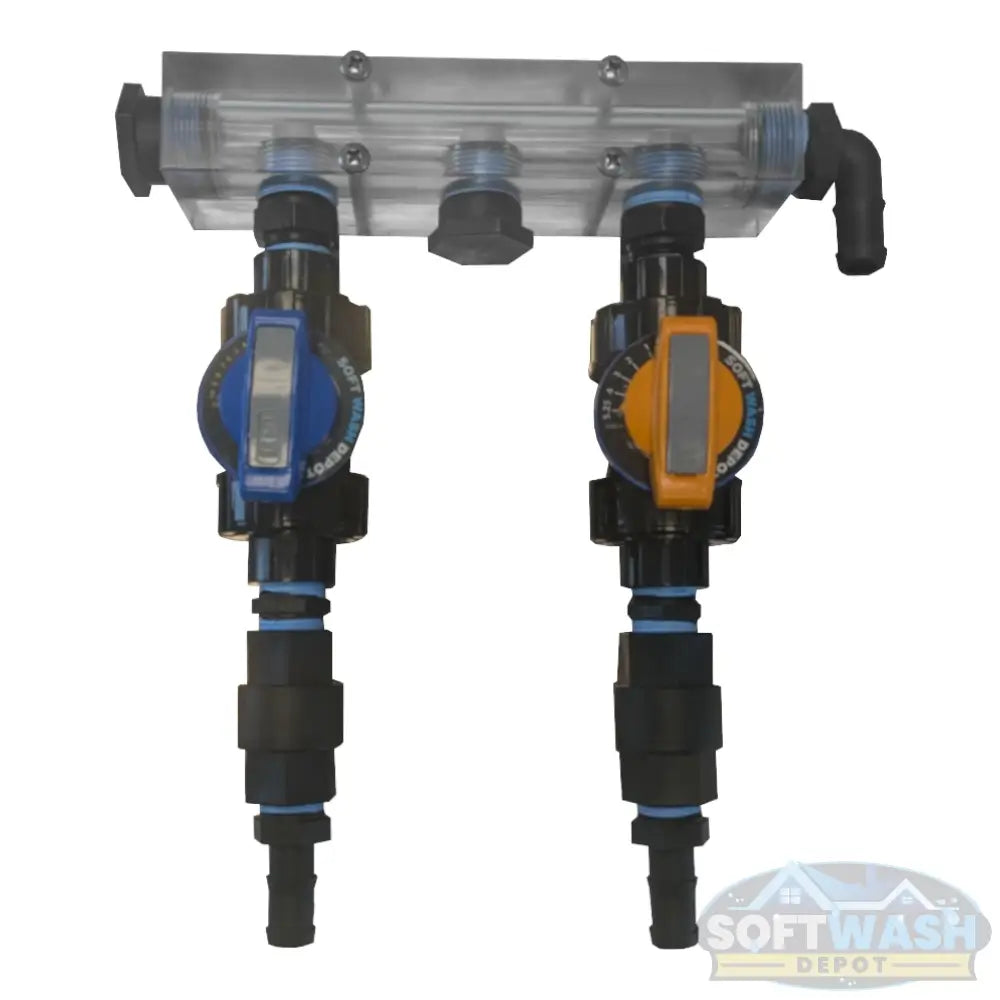

The SWD EZ Blend Precision Flow Proportioner is a professional soft washing mixing manifold. It uses a precision high flow valve to ensure accuracy when mixing soft wash. This innovative system ensures that the correct amount of cleaning solution is used every time for consistently superior results. Choose between 3 valve & 4 valve proportioner offered in 1/2", 3/4" & 1" soft washing metering valves.

Product Description

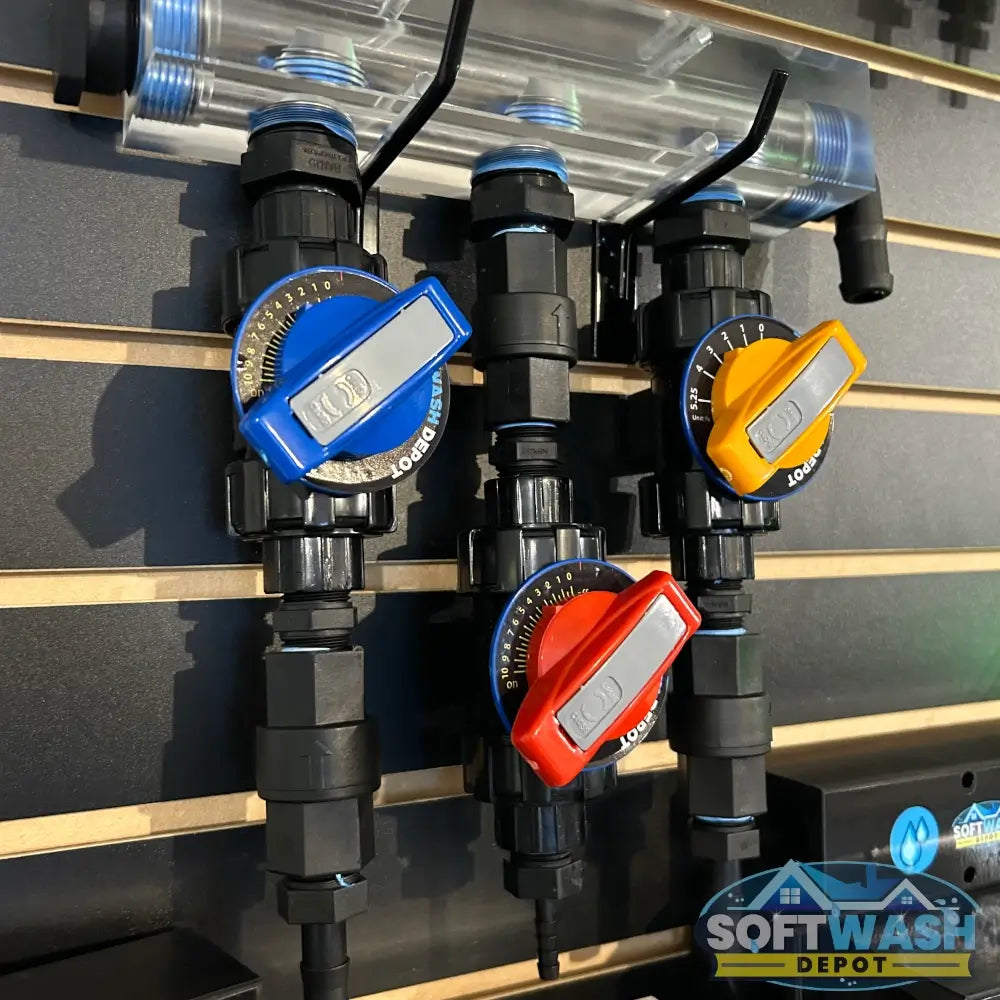

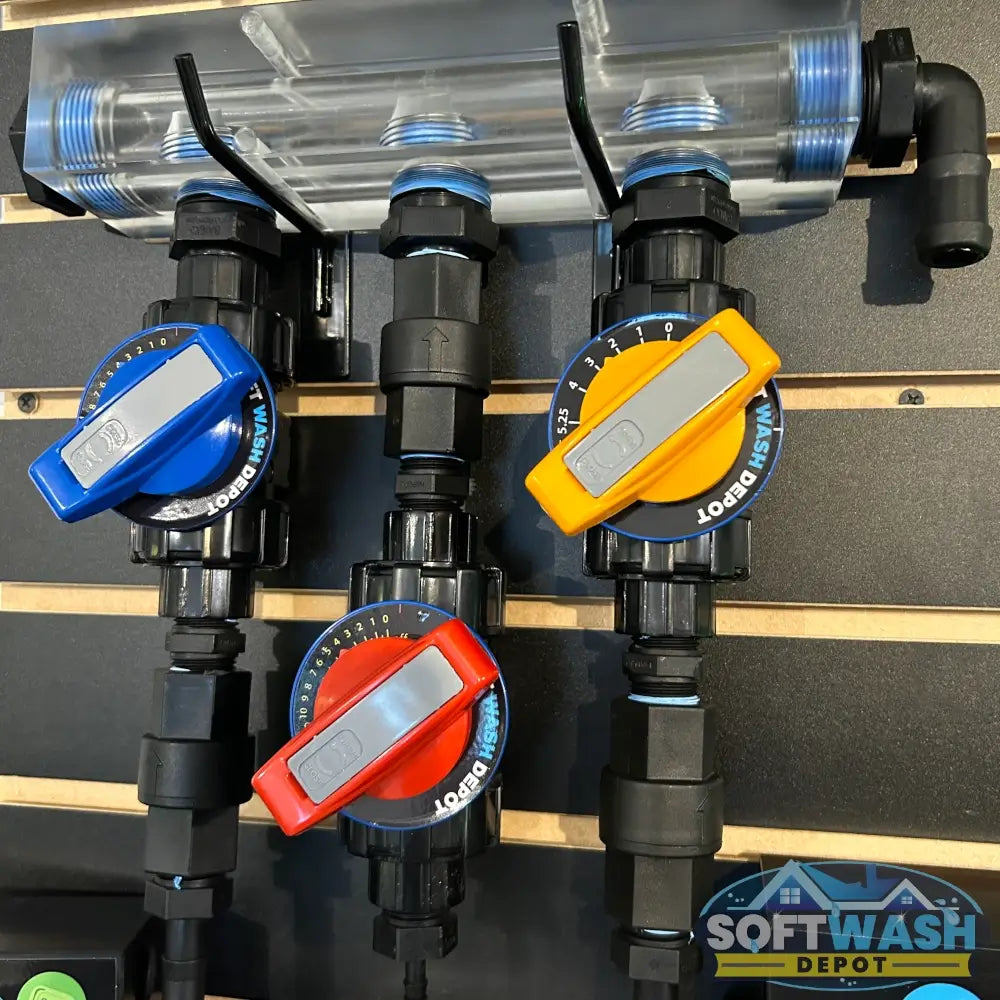

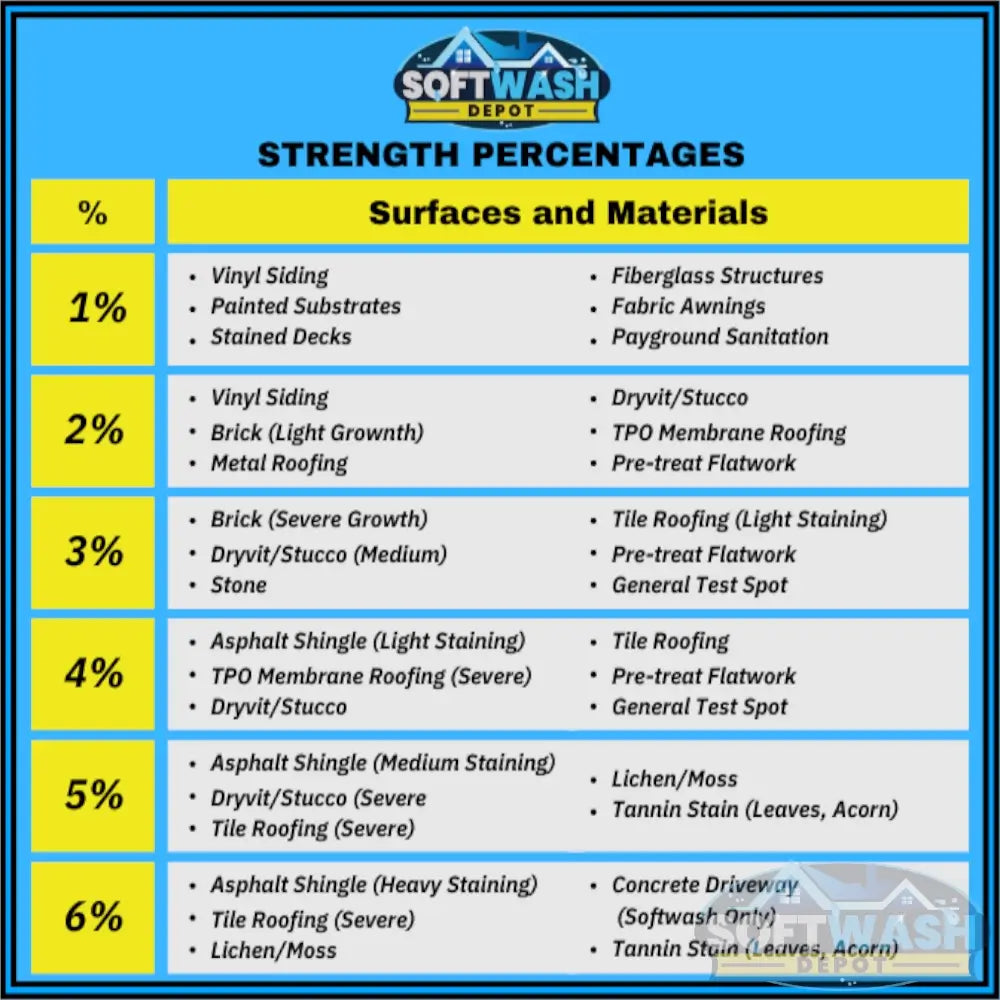

Soft Wash Depot's precision Flow Metering Valves are specifically designed & labeled for soft washing industry. 3/4” & 1” valves are accurately labeled 0-6.25% for 12.5% Sodium Hypochlorite Solution. 1/2” valves are labeled 0-10 for surfactants, degreasers/ other solutions. Perfect for soft washing mixing proportioners.

Our Soft Wash Depot EZ Blend Manifold are made from polypropylene with 1" NPT holes & 4 1/4" mounting holes.

PTFE Seals are ideal for Sodium Hypochlorite, Sodium Hydroxide, Hydrochloric acid & many other commonly used chemicals in the soft washing industry.

The handle of the valve is secured by a screw making it less likely for the handle to detach from the valve.

The ball is cut at 30° for high flow performance making them ideal for high GPM units.

 Our Recommendations:

1/2″ Valves: Surfactants, Degreasers, Acids.

3/4” Valves: 12v. Pumps (5.5GPM, 7GPM), Air Diaphragm Pumps, Booster Pumps (7GPM and Under).

1” Valves: Gas Systems (AR30, AR45, AR60, Comet P36, Comet P40), Booster Pumps (8GPM+).

 Product Details:

• Body Material: UPVC
• Pipe Size: 1/2, 3/4, 1”
• Connection Type: FNPT Socket Thread
• Max. Pressure: 150 psi
• Ball Material: UPVC
• Seal Material: PTFE
• Body Seal Material: Viton

Product Description

Chemical-resistant plastic handles with 1/2" FPT ports for high flow applications. Great for soft washing & pest control rigs.

Suttner ST-510 is polypropylene and rated to 12 GPM and 360 PSI. 1/2" Ports.

Features

• Designed for low pressure and high flow applications
• Chemical resistant
• Ideal for use with soft wash systems
• Viton (synthetic rubber) seal
• Rear fluid entry
• Stainless steel ball and pin
• Reinforced fibre glass plastic body and seat

Part #200510500Pressure362 PSITemperature122° FFlow Rate18 GPMInlet1/2" FPTOutlet1/2" FPTWeight.3 lb

Product Description

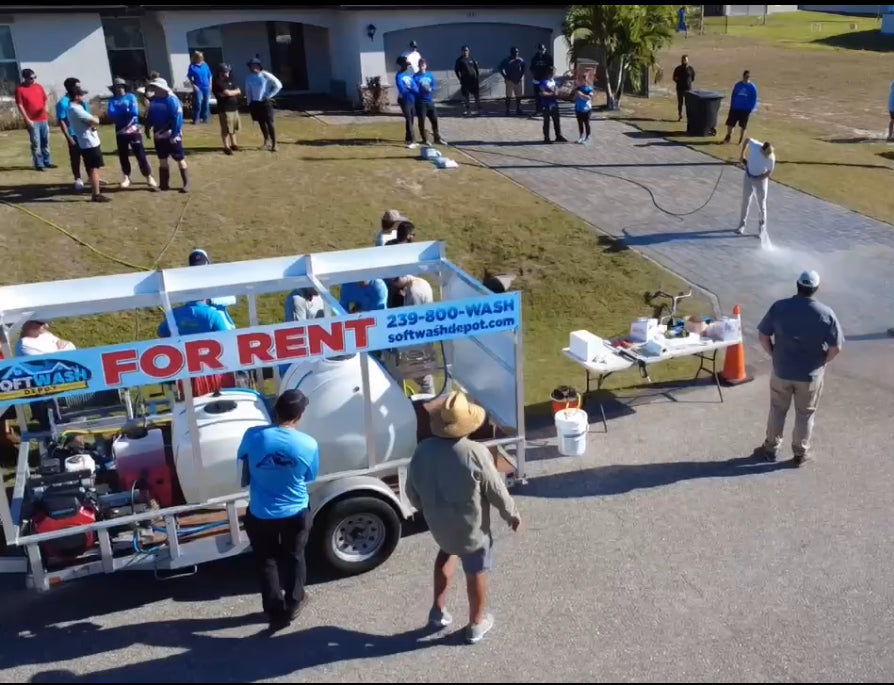

This 6’ x 12’ trailer is ideal for pressure and soft washing jobs. Boasting durable construction and a complete set up, you can be sure your jobs will be done with confidence and precision. Get the job done in comfort and with the right equipment!

Lead times on trailer builds are 1-3 weeks.

*Trailer in picture is with 8gpm upgrade kit.*

Trailer includes:

• SWD Honda w/ 5.5gpm gear drive
• 100 gallon chemical tank w/ bulkhead, down tube & plumbing
• 100 gallon water tank w/ bulkhead, hudson valve & plumbing
• 7 gallon soap tank w/ bulkhead & downtube

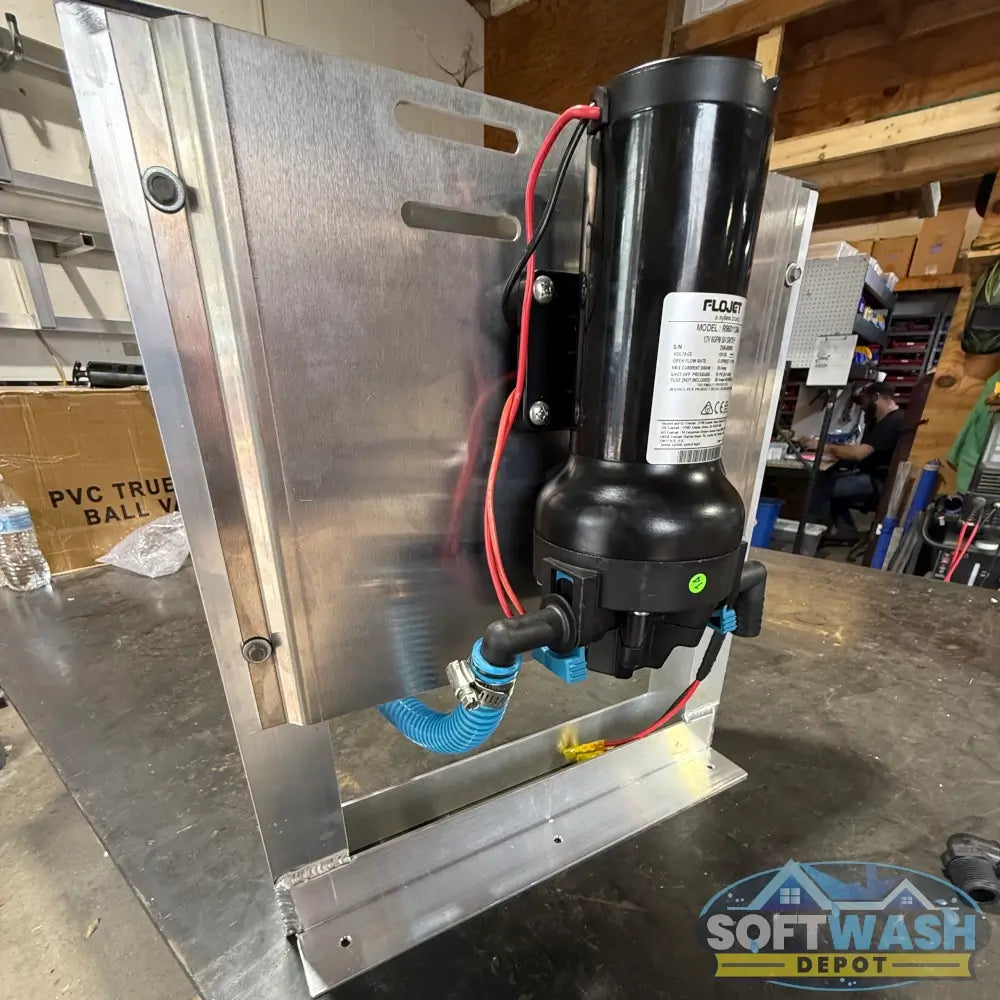

• 12v Flojet 6gpm 3/4" pump w/ deep cycle battery & box.
• SWD Precision Flow soft wash mixing proportioner
• Button switches w/ fuse & relay boxes.
• 12" aluminum manual hose reel with 100' 5/8" fill hose.
• 18" aluminum hose reel with 200' 3/8" Fierce Jet high pressure hose w/ DN10 ball valve, stainless quick connects, Suttner gun with Davish shooter tip & wand.
• 18" aluminum hose reel with 200' 1/2" Hydrauli flex softwash hose w/ ST-510 gun & Davis Shooter tip & holder.
• General Pump Hammerhead surface cleaner
• LOCAL PICK UP ONLY.


We currently do not offer shipping on completed rigs. You can buy online and pickup in the store or arrange alternative transport of the rig.
