Description

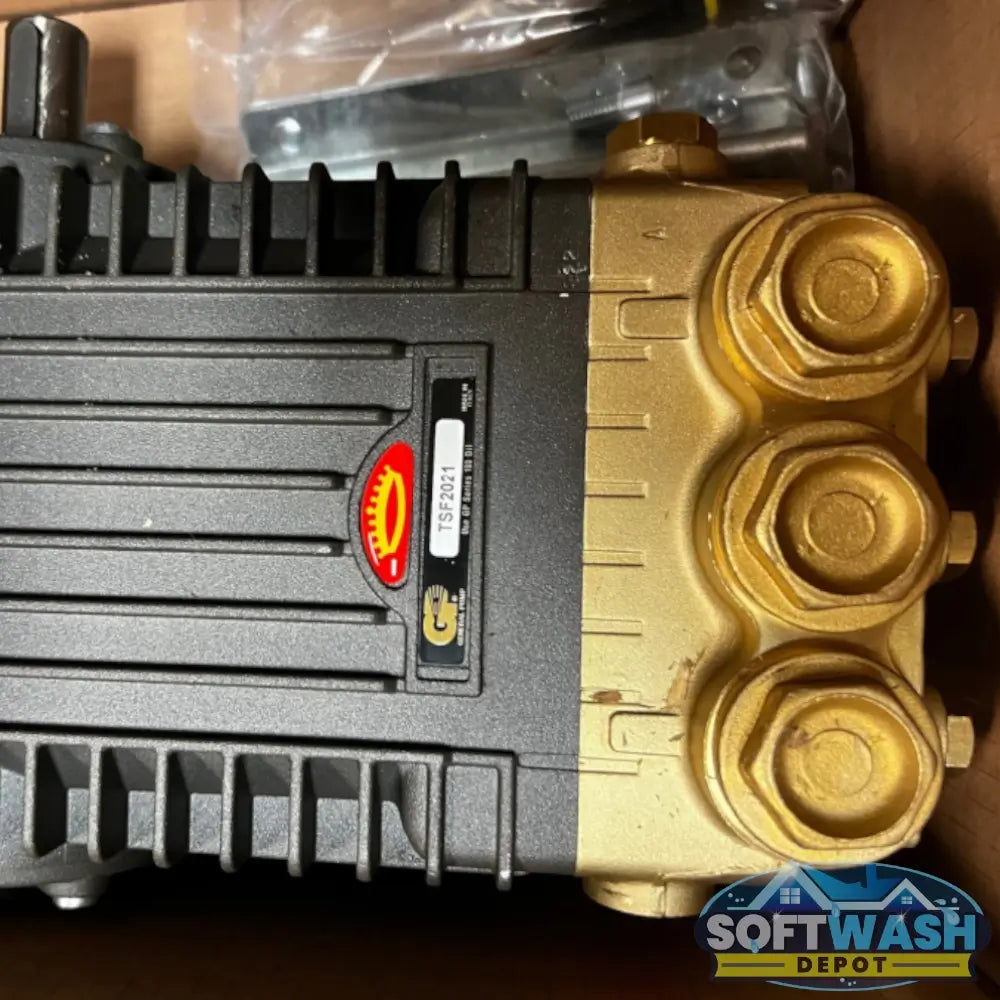

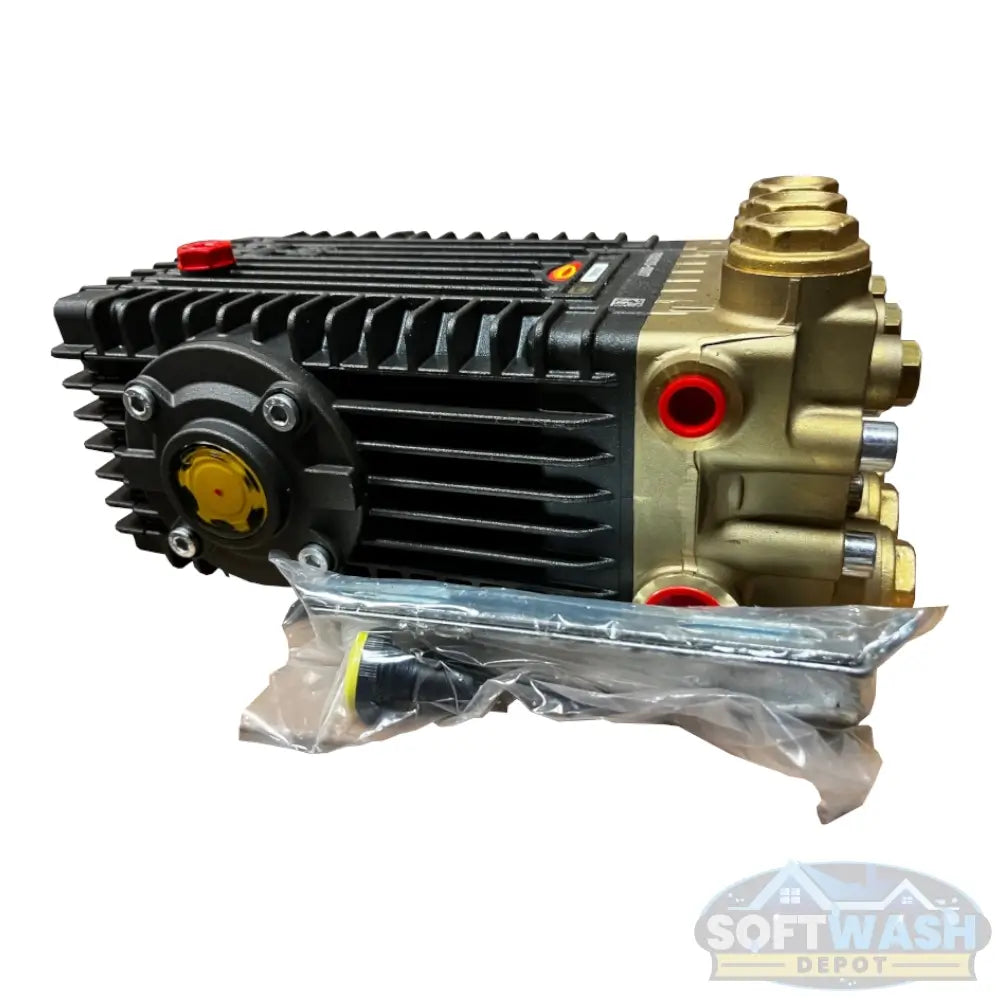

The General Pump TSF2021 is a high-performance industrial triplex plunger pump engineered for maximum durability, reliability, and power in demanding commercial pressure washing applications. Designed for heavy-duty daily use, this pump delivers exceptional flow and pressure stability, making it a top choice for contractors who demand proven performance.
With a forged brass manifold, ceramic plungers, and precision-machined components, the TSF2021 is built to withstand continuous operation and harsh environments. This bare pump configuration gives you the flexibility to mount and configure it to your system needs with your preferred accessories, gearbox, or motor setup.
Features Include:
- Oversized roller bearings
- Fully anodized crankcase
- Innovative new seal design extends seal life
- New plunger design improves thermal shock resistance
- New valve cap improves hydrostatic performance
Specifications:
- Horsepower: 21 EBHP
- Maximum Volume: 8.5 GPM
- Maximum Discharge Pressure: 3600 PSI
- Maximum Pump Speed: 1450 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Plunger Bore: .787 in. / 20 mm
- Plunger Stroke: .826 in. / 21 mm
- Crankcase Oil Capacity: 40.6 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 3/4”-14 BSP-F
- Discharge Port Thread: 3/8”-19 BSP-F
- Shaft Diameter: .945 in. / 24 mm
- Weight: 40.7 lbs.
- Dimensions: 14.94” x 9.78” x 6.99”
Additional Information:
-
✅ High-Flow Industrial Pump - engineered for large-volume commercial washing
-
✅ Forged Brass Manifold - corrosion-resistant and built for long-term strength
-
✅ Ceramic Plungers - increased durability and smoother performance
-
✅ Heavy-Duty Construction for continuous professional use
-
✅ Bare Pump Design - customize with your drive and accessories
-
✅ Trusted General Pump quality and performance
Applications:
-
Heavy-duty pressure washing rigs
-
Commercial & industrial cleaning systems
-
Fleet & equipment washing
-
Agriculture & facility wash-down systems
For contractors and cleaning professionals who demand industry-leading pump life and performance, the General Pump TSF2021 delivers power, reliability, and the quality you expect from General Pump.
