Description

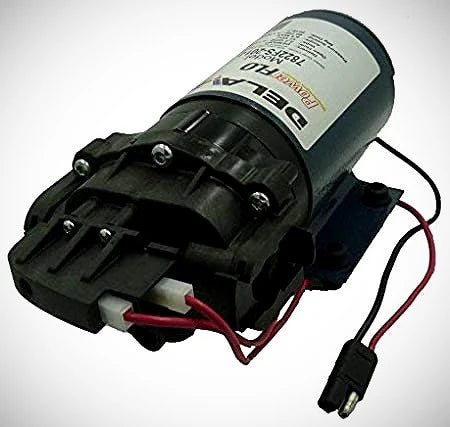

The Delavan Power Flow Diaphragm Pump is a high-performance, 12V DC positive displacement pump designed for demanding applications. Featuring a 3-chamber design, it delivers reliable flow and consistent pressure while being self-priming and capable of running dry without damage. This pump is ideal for soft washing, chemical transfer, and fluid handling in industrial, agricultural, and commercial settings.
Key Features:
-
Powerful 12V DC Motor: Permanent magnet, totally enclosed, non-ventilated motor with 14 AWG, 12" leads.
-
Durable Construction: Polypropylene housing, Viton valves, Santoprene diaphragm, and stainless steel fasteners ensure long-lasting performance.
-
Reliable Operation: 60 PSI max pressure and 14 ft (4 m) priming capabilities deliver smooth and consistent flow.
-
Versatile Inlet/Outlet Ports: Compatible with 3/8" FNPT or 5/8" Quick Attach connections.
-
Temperature Limits: Operates at liquid temperatures up to 140°F (60°C) and motor surface temperatures up to 150°F (66°C) for optimal performance.
-
Certifications: CE Approved for safety and reliability.
-
Compact & Lightweight: Weighs only 6 lbs (2.7 kg) for easy handling.
-
Convenient Power Options: Includes lead wires, two-pin molded plug, and in-line On/Off switch.

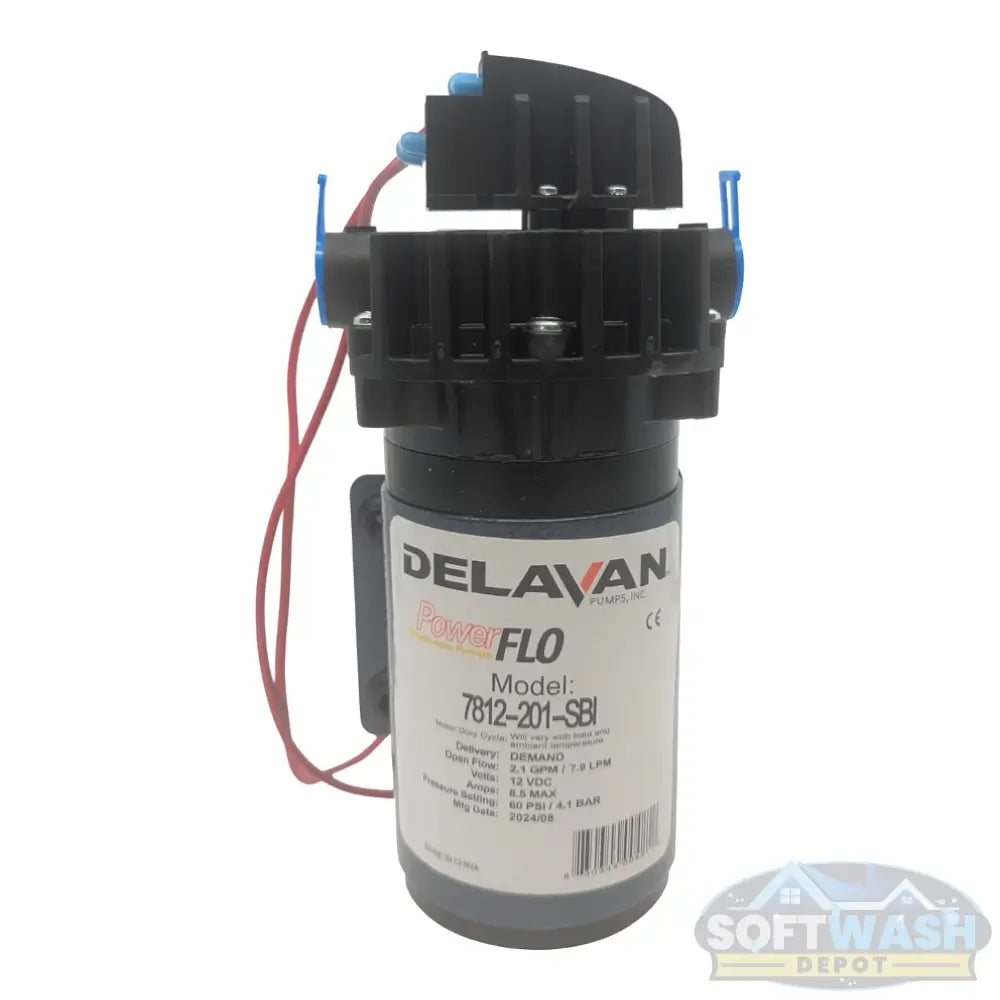

Whether you need a demand or bypass model, the 7812-201-BBI Diaphragm Pump provides consistent, reliable performance in even the toughest environments.
