Description

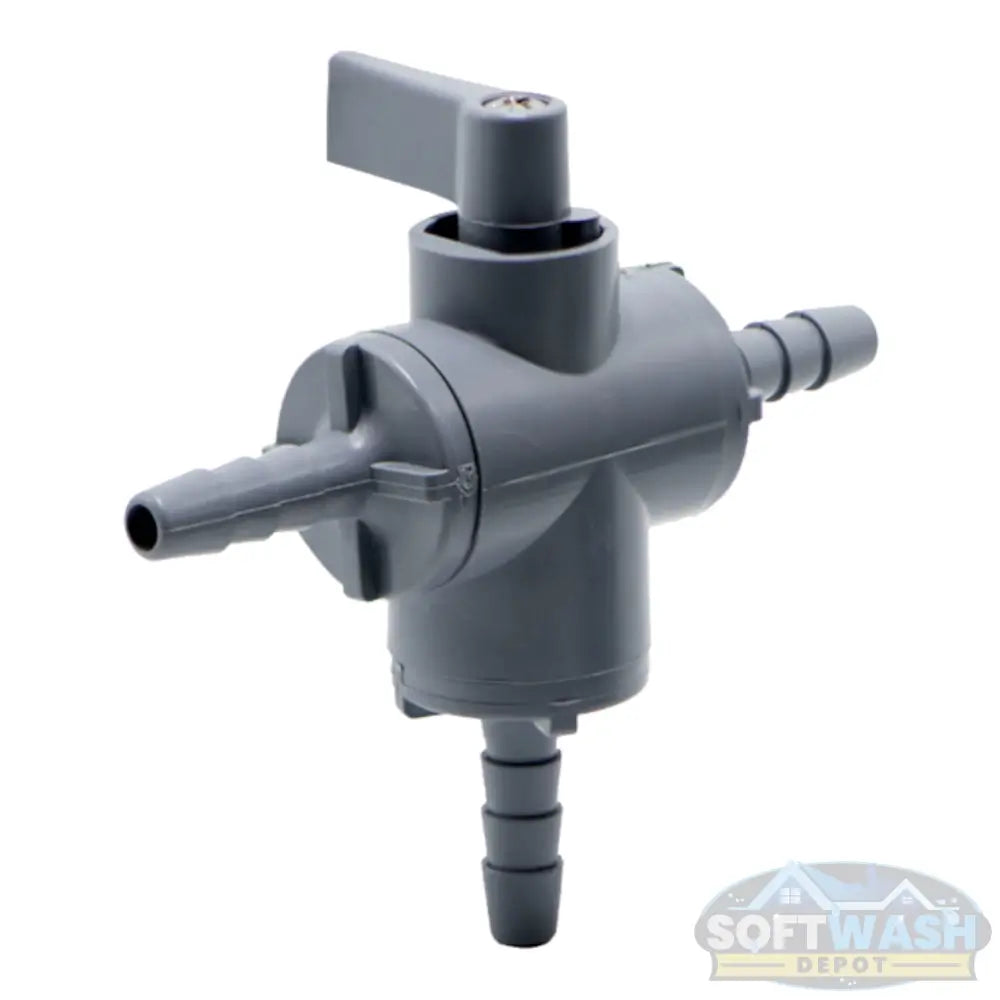

The 1/4" Hose Barb Series 326 3-Way PVC Ball Valve is a versatile and durable solution for fluid flow management. Designed with a 3-way configuration, it provides efficient routing and control for multiple lines. Its PVC construction ensures chemical resistance, while the FKM seals deliver superior performance in handling various fluids. Perfect for low-pressure applications, the 1/4" hose barb connection allows for quick and secure installation. This valve is ideal for industrial, agricultural, and soft washing systems, offering reliability and ease of use.
The 326 Series three-way ball valve design promotes multiple configurations to fit the exact end use application. The bottom port is common and the 326 Series valve can be used as a diverter or selecting valve. The handle has 180° rotation and lies over the open port. When the handle is rotated 90° from either port, flow is shut off to both ports.
- PVC valve with FKM seals
- 1/4" Hose Barb x 1/4" Hose Barb x 1/4" Hose Barb
- Good chemical resistance
- Flag handle
- 0.312" diameter through hole in ball
- Not for vacuum
- Maximum pressure: 125 psi
- Maximum temperature: 140°F
- Dimensions: 3.17" L x 2.90" Hgt.
