Parts Breakdown: AR45 Softwash System

AR45 Soft Wash Systems at Manatee Pressure Washer Supply and Repair

Are you looking for a parts breakdown for the AR45 Softwash System?

Below is the manufacturers parts list and parts breakdown. You can save the pictures or you can download the PDF for later use.
If you need to order parts. You can reach out to us anytime with the numbers on these pages and quantities needed. We can send you an invoice and send out the parts you need right away either s here in stock at the shop or from the manufacturer.

If you have a hard time seeing the part numbers from them image, we suggest downloading the above PDF Sheets.

AR45 Parts List

AR 45 Parts List

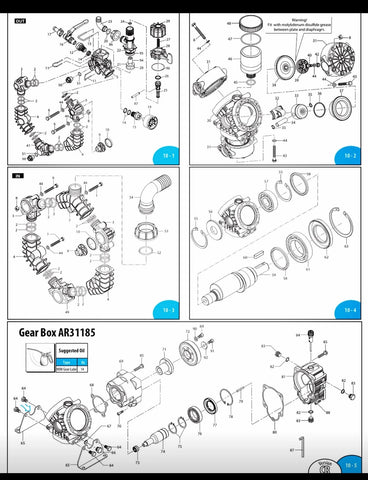

AR45 Parts Breakdown

AR 45 Parts Breakdown

Parts List AR45:

1 621782 Bolt M8x40 6 SS T90*

2 720031 O-Ring Ø 22.22x2.62 24 Viton

3 3120050 Manifold 2

4 3120060 Manifold 4

5 3120330 Manifold 1

6 3120250 Bolt M8x60 12 SS T90*

7 3120410 Manifold 1

8 3120510 Nut M8 12 SS

9 3129051 Valve 6

10 3120680 Gasket green 6 Viton

11 392580 Fork 2

12 3120421 Fitting 3/8" G F 1

13 3120320 Fork 1

14 640071 O-Ring Ø 13.95x2.62 4 Viton

15 3120420 Fitting 1/4" G M-F 1

16 130491 Valve 3/8" G - 1/2" GM-M DX 1

17 110130 Ring nut 1/2" G 1

19 3240470 Pressure gauge Ø 50 1 1 - 50 bar

20 880831 O-Ring Ø 15.54x2.62 2 Viton

21 3120311 Seat 1 Ceramic

22 3120280 Body regulator 1

23 550460 Elbow Ø 18 1

24 1123661 O-Ring Ø 7.59x2.62 1 Viton

25 3120290 Piston Upper 1

26 480441 O-Ring Ø 17.13x2.62 1 Viton

27 3120370 Spring 1

28 1880210 Ring nut 1

29 1880220 Knob 1

30 3120010 Pump body 1

31 3120020 Head 3

32 3120180 Connecting-rod 3

33 3120070 Piston Ø 54 3

34 380300 Pin 3

35 1880450 Snap Ring Øi 14 6

36 3120130 Piston ring 3

37 3120090 Sleeve 3

38 3120080 Diaphragm Øe 90 3 NBR

3120081 Diaphragm Øe 90 3 Viton

3120082 Diaphragm Øe 90 3 BlueFlex

3120085 Diaphragm Øe 90 3 Desmopan

39 3120120 Plate 3

40 3120101 Hub pin AISI 316L 3 T220* (a)

41 3120051 Manifold 1

42 3120110 Nut M8 AISI 304 3 T180*

43 3120270 Bolt M8x65 24 SS T90*

44 3120760 Washer 45 SS

45 720030 O-Ring Ø 22.22x2.62 1

46 3120240 Oil Reservoir 1 T180*

47 650920 O-Ring Ø 53.65x2.62 1

48 1040320 Plug red 1

49 3120050 Manifold 3

50 3120690 Plug 3/8" G 2 T15*

51 2840891 O-Ring Ø 14x2 2 Viton

52 1880460 O-Ring Ø 29x3 1 Viton

53 750670 Ring nut 1-1/2" G 1

54 751200 Elbow Ø 32 1

55 1460490 Snap Ring Øi 47 2

56 3120640 Ring 1

57 380230 Bearing 1

58 1300120 Ring piston rod 2

59 3120170 Shaft marked DL 1

60 2280950 Key 1

61 961780 Bearing 1

62 3120160 Ring 1

63 961790 Ring Øi 68 1

64 620342 Bolt M10x20 4 SS T265*

65 3120140 Base 2

66 880530 Plug 3/8" G 1 T180*

67 740290 O-Ring Ø 14x1.78 1

68 3120360 Gasket 1

69 3120340 Flange 1

70 180030 Bolt M8x20 1 T220*

71 3120350 Shaft 1

72 651620 Gear Z=64 1

73 620990 Bearing 1

74 621660 Pinion Z=11 1

75 320240 Snap Ring Øe 40 2

76 961780 Bearing 1

77 961800 Ring 1

78 961790 Snap Ring Øi 68 1

79 881090 Key 1

80 620950 Gasket 1

81 620960 Box 1

82 740290 O-Ring Ø 14x1.78 3

83 1980740 Plug 3/8" G brass 3 T180*

84 1140370 Plug 1

85 540300 Bolt M10x30 8 T220*

86 550450 Ring nut 3/4" G 1

87 1380630 Allen Wrench 1

88 651000 Bolt 5/16" 24 UNF 1" 4 Geomet T220*

89 620470 Bolt M10x20 3 T180*

90 200231 Washer 3

91 880280 Bolt M6x18 1 T90*

92 780230 Washer 1

94 3120301 Piston Lower 1 Ceramic

95 880311 O-Ring Ø 26.65x2.62 1 Viton

96 961241 O-Ring Ø 31.47x1.78 1 Viton

97 1880240 Pin 1
